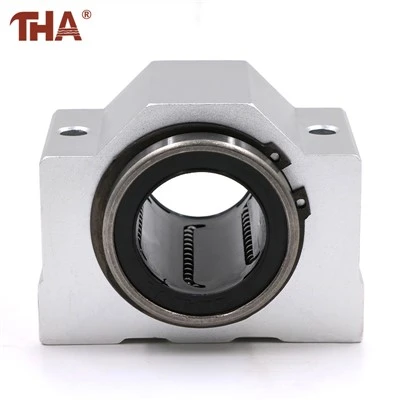

SCVUU Short Body Linear Bearing Unit

Product Details

A linear ball bushing is installed inside the aluminum housing and retained at both ends. The bearing balls circulate while the complete housing travels along a hardened round shaft.



The letter V identifies the shortened housing configuration. Compared with a standard SCUU block of the same shaft size, the SCVUU requires less space in the direction of travel. The UU suffix indicates sealing at both ends of the internal bearing.



Prepared mounting holes allow the housing to be fastened directly to a moving plate. The bearing, seals and housing are supplied as one unit, while the guide shaft and shaft supports are selected separately.



Product Description

SCVUU models are available for shaft diameters from 8 mm to 60 mm. Each model contains the corresponding LMUU linear bearing, such as an LM20UU inside an SC20VUU housing.



The shortened body is useful near end plates, drive brackets or other components that restrict the available carriage length. However, it also produces a shorter bearing support zone. Applications with a large overturning moment may require two blocks on each shaft or a longer housing arrangement.



Two parallel shafts should be aligned before the blocks are fully tightened to the moving plate. The bearing cannot compensate for incorrect shaft spacing or angular misalignment. Binding after assembly normally indicates that the shaft positions or mounting surfaces require correction.



The shaft should have suitable hardness, surface finish, diameter tolerance and straightness for recirculating linear bearings. Lubrication must be maintained according to operating speed, load and working environment.



Product Information

Load and Model Parameters

Model	Fitted Bearing	Shaft Diameter (mm)	Dynamic Load C (N)	Static Load C₀ (N)	Weight (g)
SC8VUU	LM8UU	8	260	400	36
SC10VUU	LM10UU	10	370	540	63
SC12VUU	LM12UU	12	410	590	74
SC13VUU	LM13UU	13	500	770	85
SC16VUU	LM16UU	16	770	1170	132
SC20VUU	LM20UU	20	860	1370	170
SC25VUU	LM25UU	25	980	1560	405
SC30VUU	LM30UU	30	1560	2740	495
SC35VUU	LM35UU	35	1660	3130	790
SC40VUU	LM40UU	40	2150	4010	1220
SC50VUU	LM50UU	50	3820	7930	2300
SC60VUU	LM60UU	60	4710	10000	3200

Housing Dimensions

Model	h (mm)	D (mm)	W (mm)	H (mm)	G (mm)	A (mm)	J (mm)	E (mm)	S1 × l	S2 (mm)	Lv (mm)
SC8VUU	11	17	34	22	18	6	24	5	M4 × 8	3.4	15.4
SC10VUU	13	20	40	26	21	8	28	6	M5 × 12	4.3	19.5
SC12VUU	15	21	42	28	24	7.4	30.5	5.75	M5 × 12	4.3	20.5
SC13VUU	15	22	44	30	24.5	8	33	5.5	M5 × 12	4.3	20.5
SC16VUU	19	25	50	38.5	32.5	9	36	7	M5 × 12	4.3	23.5
SC20VUU	21	27	54	41	35	11	40	7	M6 × 12	5.2	27.4
SC25VUU	26	38	76	51.5	41	12	54	11	M8 × 18	6.8	37.4
SC30VUU	30	39	78	59.5	49	15	58	10	M8 × 18	6.8	40.9
SC35VUU	34	45	90	68	54	18	70	10	M8 × 18	6.8	45.4
SC40VUU	40	51	102	78	62	20	80	11	M10 × 25	8.6	56.4
SC50VUU	52	61	122	102	80	24	100	11	M10 × 25	8.6	68.9
SC60VUU	58	66	132	114	94	30	108	12	M12 × 25	10.7	78.7

The dimension symbols correspond to the SCVUU housing drawing. Confirm the final production drawing when interchangeability with an existing block is required.



FAQ

What is the difference between SCVUU and standard SCUU?

SCVUU uses a shorter housing length. It is selected when installation space along the shaft is limited.

What does the UU suffix indicate?

UU identifies seals installed at both ends of the internal linear bearing.

Can SCVUU run on an unhardened steel rod?

An unhardened or poorly finished rod can wear quickly and damage the ball tracks. A hardened and ground linear shaft should be used.

Can one SCVUU block resist a large overturning load?

Its short bearing length limits moment-load capacity. Two blocks or a longer bearing unit may be required when the load is positioned far from the shaft centerline.

Are the shaft and shaft supports included?

No. The table describes the housed bearing unit. The shaft, end supports and mounting fasteners should be confirmed separately.

Can the housing or mounting arrangement be customized?

We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
