The first choice for automated production
It specializes in the production of ball screws, linear guides, sliders, linear modules, linear shaft, and a series of high-precision, high technology linear motion products.
Experience and Expertise
The company's production technology level, product quality and service level have always been in the leading position in the same industry!
200 Employees
Has more than 200 employees, including more than 50 senior technicians. We adopts superb technology, sets strict corporate standards, and provides meticulous service!
Service You Can Count On
Always maintain a customer-oriented attitude, we can provide you with 24-hour online services.
26,000m² Workshop
A complete product quality control system has been established, equipped with high-end inspection and testing equipment such as metallographic microscopes and contour measuring instruments.
SFI Rolled Thread Ball ScrewMade by rolling the screw spindle rather than grinding it, the SFI ball screw converts rotary motion into linear motion with noticeably less friction than a standard threaded screw — a common swap-in
Add to Inquiry
SA TK External Thread Rod EndsThis SA series covers externally threaded spherical rod ends from SA5T/K through SA35T/K. The joint connects directly to a female-threaded linkage while allowing controlled angular displacement
Add to Inquiry
FK Flanged Fixed Side UnitThe FK series is a flange-mounted fixed-end support for ball screw assemblies. It locates the screw shaft axially and provides a rigid mounting interface where a compact round housing is preferable
Add to Inquiry
Matched Ball Screw Support SetsFixed and supported-end units are selected as a pair to locate a ball screw while supporting the opposite shaft end. This page covers BK and BF, EK and EF, and FK and FF combinations for different
Add to Inquiry
SFS Configurable Feed Screw FamilyThe SFS catalogue combines ten nominal shaft diameters with selected lead and nut-code options. It is intended for projects where diameter, travel per revolution and nut configuration must be chosen
Add to Inquiry
SFK Miniature Fine Lead BallscrewSFK is a small-diameter rolled ballscrew family available from 4 mm to 25 mm. Its short lead options are intended for compact mechanisms where movement per motor revolution needs to remain limited.
Add to Inquiry

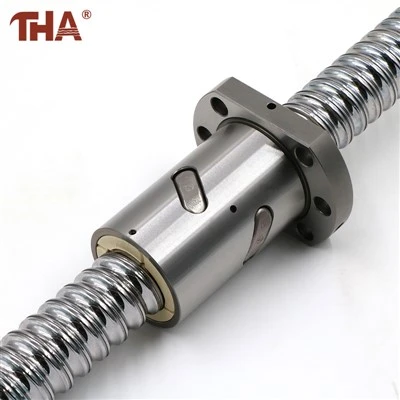

SFU1610 Single Nut Ball ScrewSFU1610 is the 16 mm screw option for layouts that need a 10 mm advance from each shaft turn. Its single flange nut mounts to the driven component while the screw remains supported at both ends.
Add to Inquiry
SFE High Lead Ball ScrewThe SFE series combines a flanged ball nut with a screw whose nominal lead equals its diameter. Six models are listed from SFE1616 to SFE5050, covering 16 mm to 50 mm screw diameters.
Add to Inquiry
DFU 3000mm Double Nut ScrewA long ball screw assembly using a DFU double-nut configuration. Shafts can be prepared for extended machine travel, including projects requiring an overall length of approximately 3000 mm.
Add to Inquiry
DFU16 Flanged Double NutOrder a DFU16 and you're really choosing among several different screws that happen to share a name — lead, circulation path, and end machining all vary within the family, so the four-character model
Add to Inquiry
SFY Ground Ball Screw NutUnlike the rolled-thread SFI screw, the SFY series is ground rather than rolled — a slower, more precise manufacturing process suited to applications where positioning accuracy matters more than
Add to Inquiry
DFU Linear Module AssemblyA ball screw assembly — lead screw, nut, and circulating ball bearings — built as a complete linear module rather than sold as loose screw-and-nut components, for CNC tools, industrial robots, and
Add to Inquiry
About Ball Screw
Ball screw is made of screw and ball nut. It's function is to turn the rotary motion into linear motion which is a future extension and development of ball screw. The significance of the development is to move into a rolling bearing from sliding action. With little frication, ball screw are widely used into various industrial equipment and precision instruments.
Advantages Of Ball Screws
High Reliability
THA ball screw has very stringent quality control standards covering every production process. With proper lubrication and use,trouble-free operation for an extended period of time is possible.
Smooth Operation
The high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.
High Rigidity and Preload
When axial play is minimized in conventional screw-nut assemblies, the actuating torque becomes excessive and the operation is not smooth. The axial play in THA precision ball screws may be reduced to zero by preloading and a light smooth operation is still possible. herefore, both low torque and high rigidity can be obtained simultaneously.THA ball screws have gothic arch groove profiles which allow these conditions to be achieved.
Circulation Method
Ball return tube method;Ball defelector method.
High Durability
Rigidly selected materials, intensive heat treating and processing techniques, backed by years of experience,have resulted in the most durable ball screws manufactured.
Production Process Of Ball Screw
1. Polishing process before heat treatment
The technological standard of the lead screw lies in the center holes at both ends, which can prevent the end face from being damaged and lead to the accuracy of the center hole. At the same time, the hardness of the center hole should reach 58 ~ 62 HRC, and the accuracy of the center hole is the key to ensuring the accuracy of the ball screw. The adjustment process of the center hole should be arranged before the rough grinding and fine grinding processes, that is, after quenching and aging.
2. Heat treatment and straightening
During the heat treatment of the lead screw, attention should be paid to avoid bending deformation, and the straightening process should be avoided as much as possible. If necessary, thermal straightening treatment can be adopted.
3. Grind
In the method and selection of grinding, we should use different tools and methods according to the material of the workpiece, heat treatment hardness, surface roughness, particle size and hardness of the grinding wheel, rough and fine grinding and so on.
Application Domain
AUTOMOTIVE INDUSTRY
MEDICAL EQUIPMENT
ROBOT
MACHINE TOOLS
LISHUI GUANGYUAN INDUSTRY aND TRADE CO., LTD.
15 Years Of Extensive Brand Manufacturing Experience
Lishui Guangyuan Industry and Trade Co., Ltd. the company integrates product development, production, sales, and application services.
The company integrates product development, production, sales, and application services.
It specializes in the production of a series of high-precision, high-tech linear transmission products such as ball screws, linear guides, sliders, linear modules, and linear optical axes.
It covers an area of more than 26,000 square meters and has more than 200 employees, including more than 50 senior technicians.

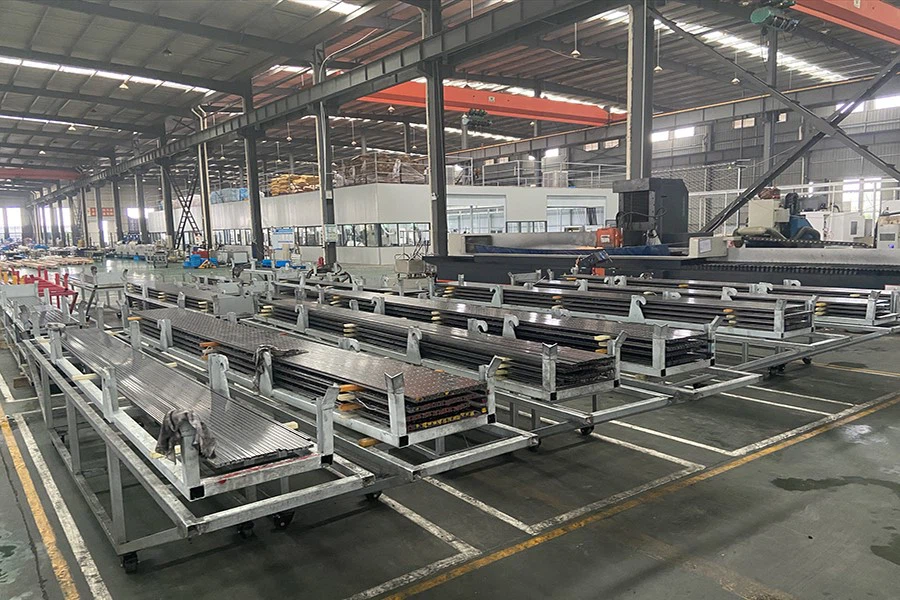

Production Workshop
Factory Strength,Complete Equipment
Factory Strength,Complete Equipment
Factory Strength,Complete Equipment
FAQ
1. Q: Could you offer OEM service?
-
A: Yes, we offer OEM service.
2. Q: What is your MOQ?
-
A: For standard type, no MOQ. For produce goods, we need according bearing type.
3. Q: How to control the products quality?
-
A: Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
4. Q: Where is your factory located?
-
A: Our factory is in China. Welcome to contact us anytime.
5. Q: Can the machine be customized as our need, such as put on our logo?
-
A: Surely our machine can be customized as your need, put on your logo is also available.
As one of the leading ball screw manufacturers and suppliers in China, we warmly welcome you to wholesale discount ball screw from our factory. All customized products are with high quality and competitive price. For pricelist, contact us now.
