Linear Bearing

The LMK series combines a short linear ball bushing with a square four-hole flange, allowing a moving plate to be connected directly to a round-shaft guidance system.

The LM LUU series is an extended cylindrical ball bushing for round-shaft guidance. Its longer body separates the shaft contact zones across a greater distance than a standard LM UU bearing.

LM25UU is a 25 mm closed linear bearing measuring 40 mm across the outer cylinder and 59 mm in length. It fits inside a separate housing and travels on a hardened round shaft.

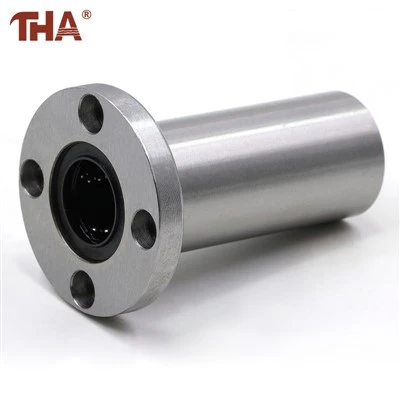

The LMF is a linear ball bushing with a circular four-hole flange at one end. Its cylindrical body passes through a prepared opening, leaving the flange against the mounting plate.

The LMH unit places a linear ball bearing inside a cylindrical body with an oval four-hole flange. It is installed through a prepared plate so the bearing body sits behind the mounting face rather

A self-contained linear bearing with a cylindrical sleeve that passes through the mounting plate and a four-hole flange that fixes its position on the plate face.

LM-LUU and LME-LUU are extended cylindrical bearing sleeves for round-shaft guidance. Their internal bores may match, but the outside dimensions must be checked before preparing a replacement housing.

LMF8UU combines an 8 mm linear bushing with a circular mounting flange. The flange allows the bearing to be fastened directly to a moving plate without adding a separate bearing housing.

Made for a 20 mm round shaft, the SC20UU arrives as one assembled carriage rather than a loose bushing and housing. Bolt the aluminum block to the moving plate, align it with the shaft, and the

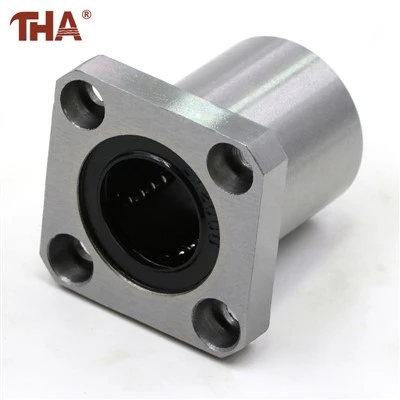

LMEK bearings combine a closed linear bushing with a square mounting flange. The four-hole flange lets the bearing bolt directly to a moving plate, eliminating the need for a separate pillow block.

LM12UU provides recirculating-ball guidance for a 12 mm round shaft within a 21 mm diameter and 30 mm long cylindrical envelope. Its standard-length body is suited to compact carriages where a

LME16UU is a standard-length cylindrical ball bushing sized for a 16 mm linear shaft. Its European-series dimensions—26 mm outer diameter and 36 mm overall length—allow it to be installed inside a
