SBR16 Aluminum Guide Rail

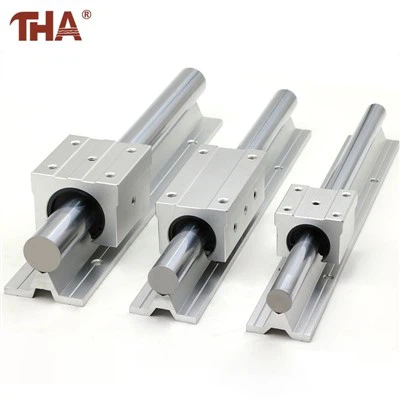

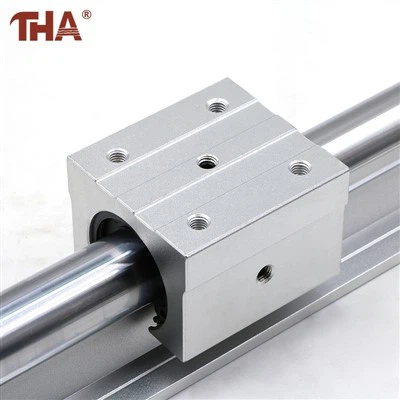

A rolling guide built from a hardened shaft mounted in an aluminum seat, paired with a recirculating-ball slide block — the aluminum seat is what separates this SBR16 rail assembly from the LUU-style bearing block sold separately.
Description

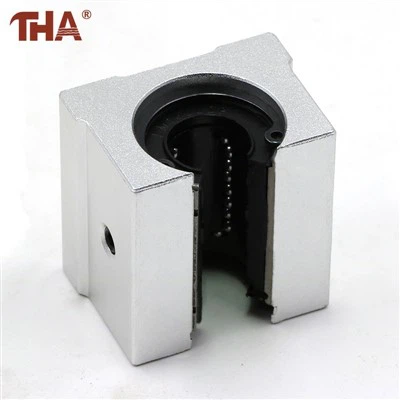

Rolling steel balls cycle between the slide block and the shaft rather than sliding directly against it, which is the main reason this type of guide outperforms a traditional machine tool slideway - friction drops to roughly 1/50 of what a plain sliding guide produces. Less starting friction means less "stiction" when the load platform first begins to move, which is what actually determines whether a system can hit high-precision feed and positioning or not. Paired with a ball screw, this rail becomes the guiding element that lets the screw's positioning accuracy actually show up at the load platform, rather than getting lost to slop in the guide.

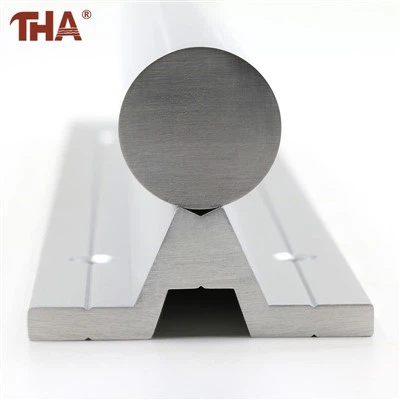

Built from aluminum and stainless steel - aluminum seat, hardened shaft - model SBR16, in the slide-rail-plus-slide-block configuration. It's commonly used in CNC machining, engraving machines, and other machine tool applications.
We build to customer drawings or samples under OEM/ODM, with full size options available. Lead time is roughly 2–3 days for in-stock items, 8–15 days for made-to-order, depending on quantity and model.
|
item |
value |
|
Condition |
New |
|
Warranty |
6 months |
|
Applicable Industries |
CNC, Engraving machine, machine tool |
|
After Warranty Service |
Online support |
|
Marketing Type |
Ordinary Product |
|
Warranty of core components |
6 months |
|
Core Components |
Hard shaft, Aluminum seat |
|
Model Number |
SBR16 |
|
Place of Origin |
zhejiang |
|
Brand Name |
THA |
|
Material |
Aluminum+stainless Steel |
|
Type |
Linear Motion Guideway |
|
Application |
Cnc Machining Parts |
|
Feature |
High Accuracy |
|
Structure |
Slide Rail + Slide Block |
Why choose us
Lishui Guangyuan Industry & Trade Co., Ltd. is a leading manufacturer of high-precision linear motion components, including ball screws, linear guides, sliders, and motion modules. Many of our products hold national patents and meet international certifications. Based in Lishui, Zhejiang, China, our 26,000 m² facility houses over 200 staff, including more than 50 senior engineers. With advanced equipment and strict quality control, our products are widely used in medical, printing, chemical, woodworking, and automation industries. Trusted by clients worldwide, we welcome global cooperation to build a successful future together.
Shipment & contact us
FAQ
1.Q: When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority.
2.Q:How long is your delivery time?
A:Generally, if the product is in stock, it will take 2-3 working days, and if it is not in stock, it will take 8-15 working days. It depends on the quantity, model, and whether it is customized.
3.Q: How can I get a sample to check your quality?
A: We are honoured to offer samples,You are requested to pay the shipping cost and some samples cost.
4.Q: Have items 100% finished in stock?
A: Most items are all well finished in stock, but some items are newly machined according to your requirements.
5.Q:Can I choose the sizes?
A: Yes, We have full size available for your to choose.
