MGNS100F Folded Motor Linear Stage

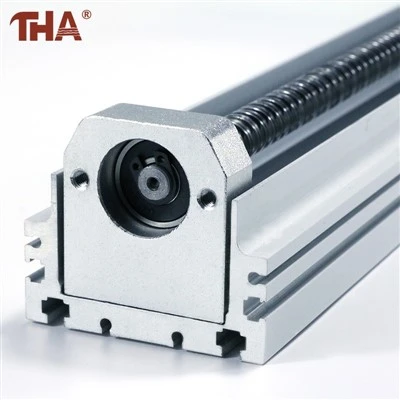

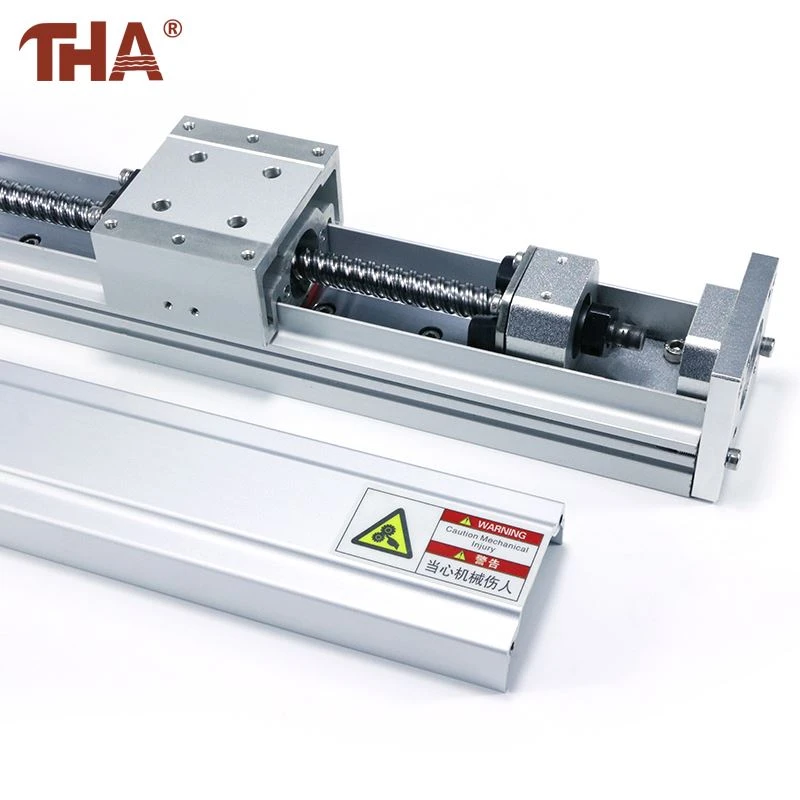

MGNS100F Folded Motor Linear Stage offers left, right and lower motor arrangements for machines with restricted space behind the axis. A 16 mm C7 ball screw drives the carriage, while two MGR15 rails and four MGN15 blocks guide its movement.
Description
Put the motor where the machine has room
A rear-mounted motor can conflict with an enclosure wall, even when the required travel fits comfortably inside the machine. The MGNS100F offers BC inline mounting and BL, BR or BM folded arrangements, allowing the drive position to be considered alongside the surrounding equipment.
The drawing shows a modest difference in dimension A between these arrangements. At 400 mm effective travel, the values are:
| Drawing configuration | Dimension A (mm) | Catalog module weight (kg) |
|---|---|---|
| BC, "57 Motor" row | 650 | 7.5 |
| BC, "60 Motor" row | 655 | 7.5 |
| BL / BR / BM | 640 | 8.0 |
Dimension A follows the catalog drawing; it is not a universal motor-inclusive overall length.
The main packaging benefit comes from relocating the motor, rather than assuming a large reduction in the module body length. A side arrangement needs lateral clearance; a lower arrangement needs space beneath the axis. Cable connectors and access to the drive should be included when checking either option.
Attach the tooling to a defined interface
The moving plate drawing specifies four M5 threaded holes with 12 mm depth and two Ø5 H7 locating holes with 10 mm depth. The threaded holes secure the fixture; the locating holes provide a reference for its position. This is useful when a dispensing head, inspection fixture or small handling tool needs to be removed and refitted.
On an MGNS100F Folded Motor Linear Stage, the tooling should also be checked through its full movement. A fixture that clears the motor at mid-stroke may approach it differently at the end of travel, especially when hoses or cable loops extend beyond the plate.

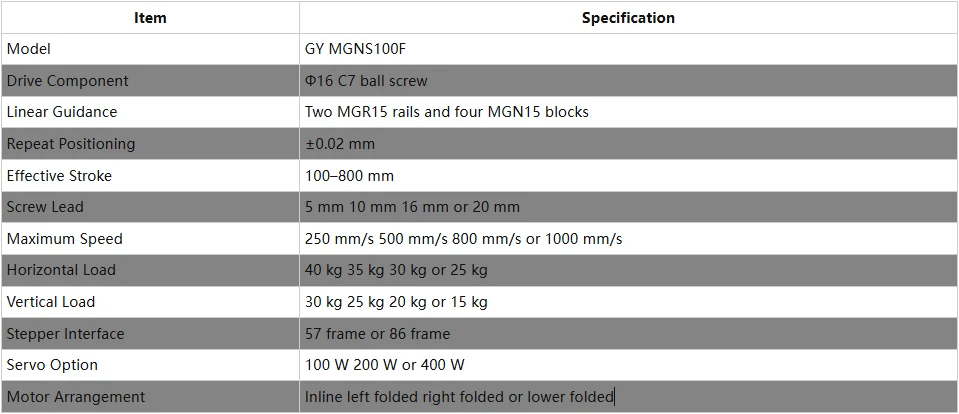

Effective stroke ranges from 100 to 800 mm in 50 mm increments. Lead selection is separate: the 5, 10, 16 and 20 mm versions have listed maximum speeds of 250, 500, 800 and 1,000 mm/s, respectively. Their horizontal handling limits are 40, 35, 30 and 25 kg. Changing the motor position does not combine the highest speed with the highest load rating.
The published repeat positioning figure is ±0.02 mm. For an MGNS100F Folded Motor Linear Stage carrying an offset tool, provide the tool's center of gravity and operating forces as well as its weight so the proposed arrangement can be reviewed.




About Us
Guangyuan supplies linear stages and accepts drawing-based OEM/ODM enquiries for machine integration. Specify the stroke, screw lead, installation direction, motor model and BC/BL/BR/BM arrangement when requesting a quotation. The minimum order quantity is 1 unit.
