Female Thread Greaseable Rod End

Product Details

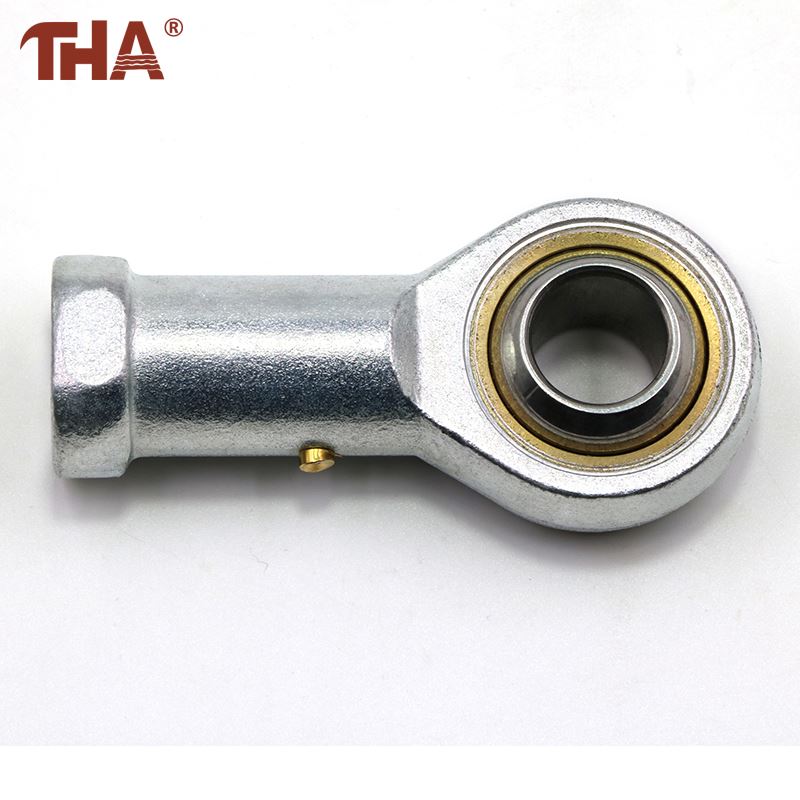

The threaded socket is formed inside the straight end of the housing. It screws onto a matching male control rod or cylinder connection, leaving the circular bearing eye available for a pin, bolt or pivot shaft.



A grease fitting is installed beneath the threaded body. This gives lubricant a direct route into the spherical contact area without removing the rod end from the linkage. The fitting must remain accessible after the surrounding brackets and guards are installed.



The inner ring can tilt relative to the housing. This movement accommodates the angular change of a linkage, but it is not intended to correct a large permanent offset between two incorrectly positioned mounting points.



Product Description

Thread engagement should be checked before the joint is loaded. The rod must use the correct diameter and pitch and should enter far enough to provide secure engagement without bottoming against the closed end of the socket.



A locknut can be used on the connecting rod to hold the final adjustment. Tighten the locknut against the rod-end body rather than using the spherical inner ring as a handle, as force applied through the bearing eye can mark the contact surfaces.



During maintenance, add lubricant in controlled amounts. Grease appearing around the spherical ring indicates that the internal space has been filled; continued pumping can displace seals or attract excess contamination around the joint.



Product Information

Selection Point	Page Information
Product Type	Female-thread spherical rod end
Housing Material	Carbon steel
Connection	Internal threaded socket
Joint Form	Spherical plain bearing
Lubrication	External grease fitting
Permitted Movement	Pivoting and limited angular misalignment
Primary Load Direction	Radial with limited axial load
Installation Check	Thread diameter, pitch and engagement length
Required Matching Parts	Male threaded rod and pivot pin or bolt





FAQ

Is this product confirmed as stainless steel?

No. Although the URL uses "stainless steel," the page description identifies the bearing as carbon steel. Stainless steel should not be claimed unless a separate material specification is confirmed.

What is the small fitting under the body?

It is a grease point used to lubricate the spherical contact area during maintenance.

Can the bearing compensate for badly aligned mounting brackets?

It can accommodate limited angular movement. It should not be used to force together brackets with a substantial permanent offset.

How should the thread be specified?

Provide the thread diameter, pitch and direction. Male and female threads must correspond exactly.

Is continuous high-speed rotation suitable?

No. Rod ends are intended mainly for oscillating, pivoting and angular linkage movement rather than continuous high-speed rotation.



About Us

Lishui Guangyuan Industry & Trade Co Ltd supplies male-thread and female-thread rod ends for cylinders, control rods and mechanical linkage assemblies.

We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
