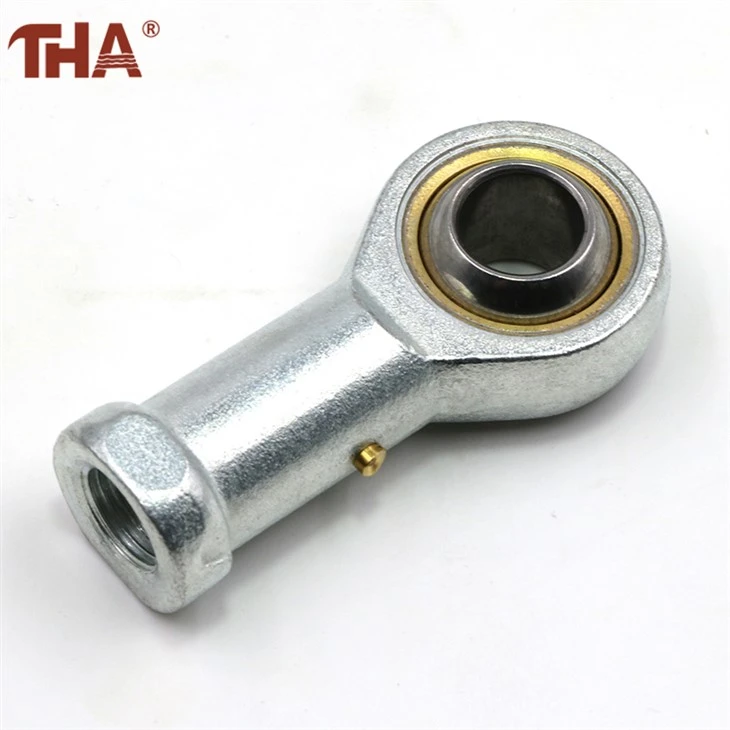

Heavy Duty Rod Ends

Heavy Duty Rod Ends is composed of an inner and outer ring of a spherical sliding spherical contact surface.It can bear large load and has the function of self-lubrication.It is suitable for swing movement and inclined movement with low speed‌.



The models and specifications of PHS series rod end joint bearings are as follows:

Inner diameter: 12mm, outer diameter: 12mm, thickness: 10mm, cage and material: F1 carbon steel, use characteristics: corrosion resistance, self-lubricating.



The working principle of rod end bearing PHS mainly depends on its spherical sliding design. The inner ring has an outer sphere, and the outer ring has an inner sphere, which enables the bearing to work normally in low-speed swinging motion, inclined motion and rotating motion. Because the outer sphere of the inner ring is inlaid with composite material, the bearing can produce self-lubricating effect in the work, reducing the pollution of lubricating dirt‌.



Application areas and advantages:

Rod end joint bearing PHS is widely used in engineering hydraulic cylinder, forging machine tool, engineering machinery, automation equipment, automobile shock absorber, hydraulic machinery and other industries. Its unique structural design enables it to work normally under different concentricity, has large load capacity and impact resistance, and has the advantages of corrosion resistance, wear resistance and self-aligning‌.



Under liquid lubrication conditions, the sliding surface of Rod End Ball Bearing is separated by the lubricating oil without direct contact, which can also greatly reduce friction loss and surface wear. The oil film also has a certain vibration absorption capacity.



In summary, the rod-end bearing PHS can play an important role in a variety of industrial applications through its unique spherical sliding design and self-lubricating mechanism, ensuring the stable operation and long life of the equipment.

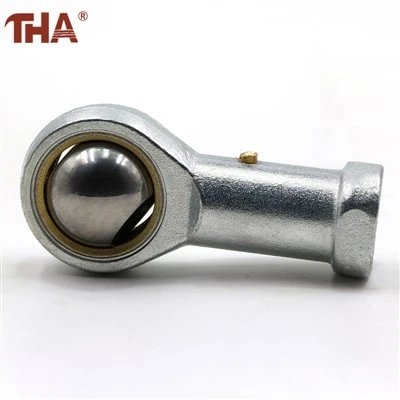

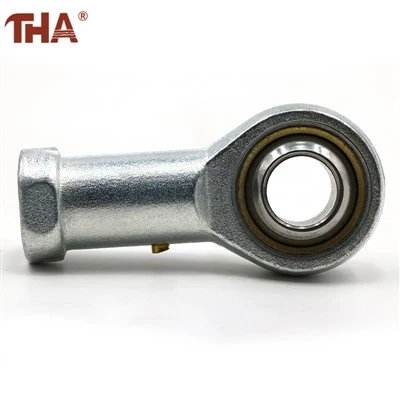

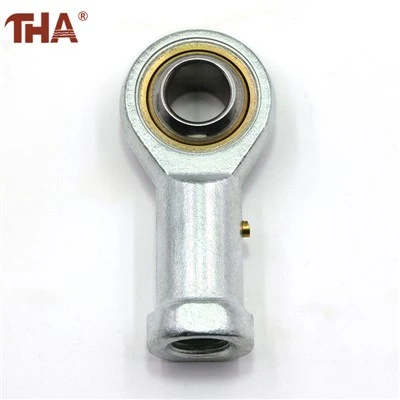

The rod end of the PHS model has internal threads, made of carbon structural steel, and has a lubricating oil groove.It can bear radial load and axial load less than or equal to 0.2 times of radial load in any direction.



Product Information
Product Name	Ball Joint Rod End Bearing
Material	Carbon steel, white zinc, bearing steel, hard chrome
Length	Can be customized according to customers requirement
Application	General industrial machinery, Automated machinery, Electronic machinery, Transportation machinery, Food Machinery, industrial gearboxes, pumps, agricultural machinery, etc
Model No.	PHS5, PHS6, PHS8,PHS10, PHS10-1, PHS12, PHS12-1, PHS14, PHS14-1, PHS16, PHS16-1, PHS18, PHS20, PHS22, PHS25, PHS28, PHS30, PHS30-1
Our services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.

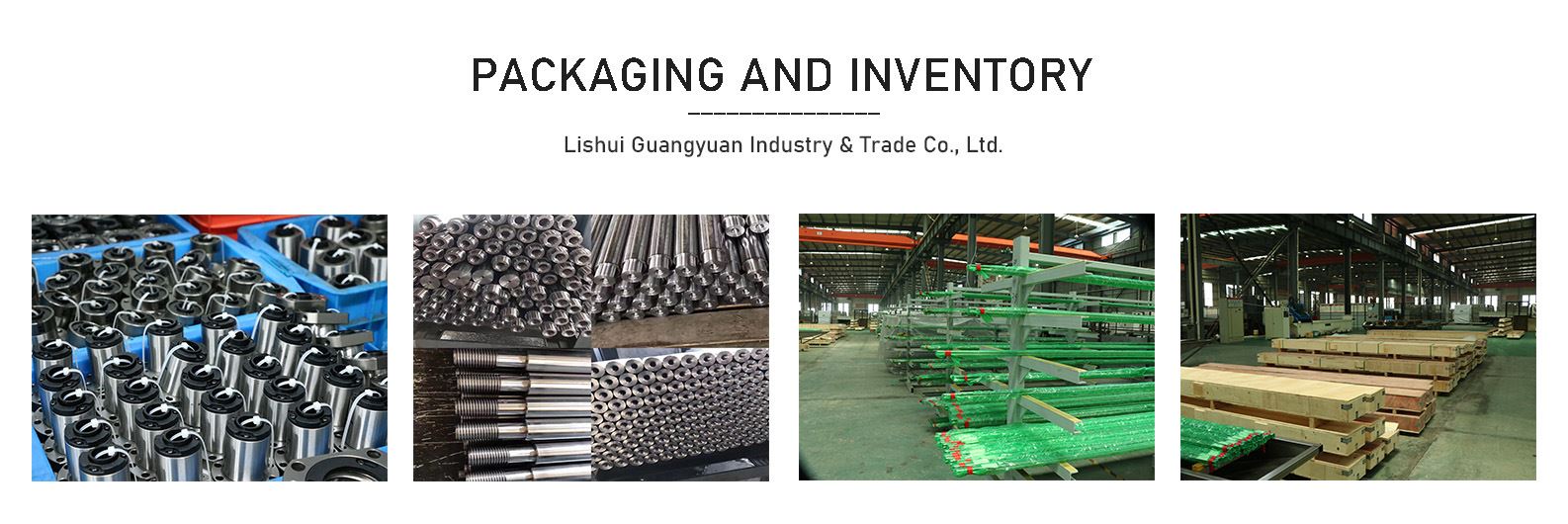

Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time
Delivery Time	3~7 days for sample order, 15~20 days for bulk order. Depends on the actual shipping situation.



FAQ

1. How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity.



2. What kind of bearing do you produce?

A: Ball screw, linear guide, linear shaft, linear stage, rod end, support end and so on.



3. Can you send bearing samples first?

A: Yes, we can send bearing samples to check quality first.



4.  What is your MOQ?

A: For common bearing model number, our MOQ is 1pc.



5. How can I get pricing?

A: Email us OEM No. (Samples or drawings provided be preferred), quantity you need, if any specific material or surface treatment required. We will send you quote within 48 hours.
