SFU Internal Recirculation Ball Screw

The SFU Internal Recirculation Ball Screw uses a single flanged nut with an internal ball return path. Without an external return tube projecting from the nut, the assembly provides a compact transmission layout for enclosed feed mechanisms and moving tables.

Description

The return path is inside the nut

Balls carry load between the screw groove and the nut raceway, then return through an internal passage to repeat the circuit. This circulation allows the nut to travel along the threaded shaft while retaining its rolling elements. The return mechanism belongs to the nut; the flange connects that nut to the driven component.



For an enclosed axis, this arrangement removes the need to accommodate a projecting return tube beside the nut. Space is still required around the flange, lubrication connection and attachment screws. The cylindrical nut diameter alone therefore does not describe the complete installation envelope.



One SFU designation, two catalogue layouts

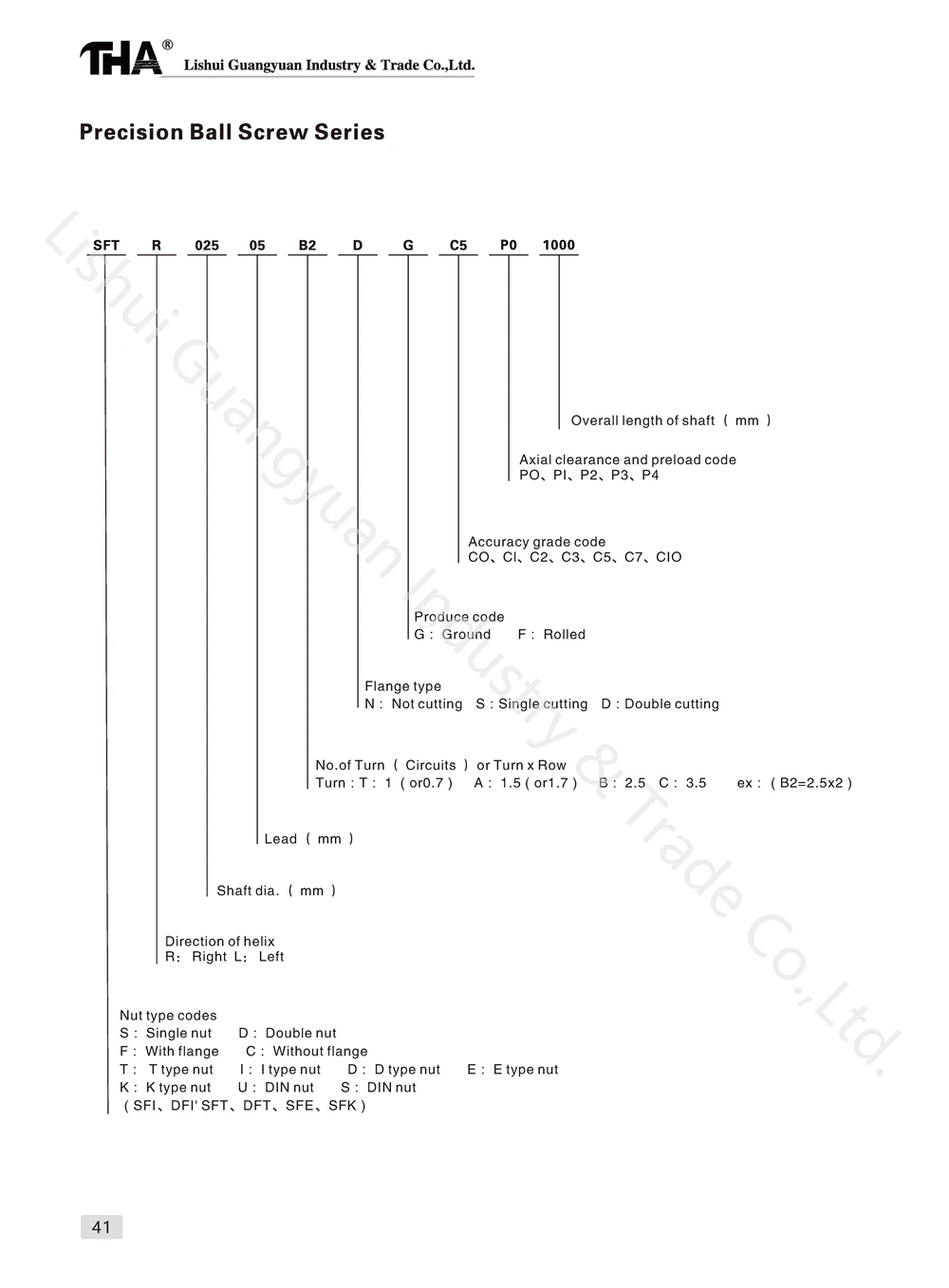

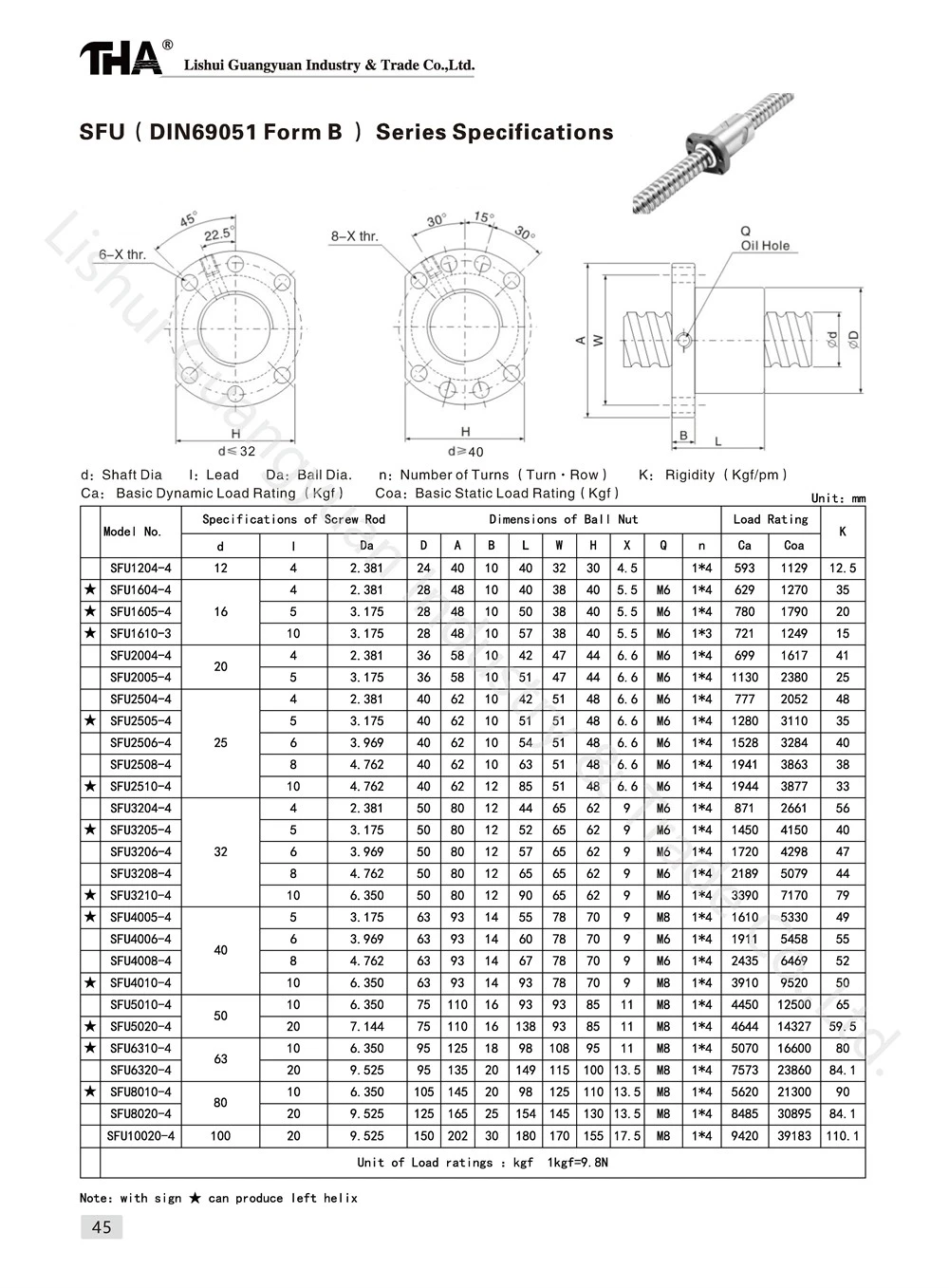

Guangyuan's product page includes both the general SFU specification sheet and a separate sheet labelled DIN 69051 Form B. Their dimensions should be read independently. The following examples show why a replacement order needs the applicable drawing as well as the model number.



Model Catalogue sheet Nut body Ø (mm) Flange Ø (mm) Nut length L (mm) Flange thickness B (mm)
SFU1204-4 DIN Form B, page 45 24 40 40 10
SFU2505-4 General SFU, page 44 40 63 51 10
SFU2505-4 DIN Form B, page 45 40 62 51 10
SFU2510-4 General SFU, page 44 40 62 85 15
SFU2510-4 DIN Form B, page 45 40 62 85 12



For SFU2505-4, the two sheets give the same body diameter and nut length, but different flange diameters. For SFU2510-4, the listed flange thickness changes by 3 mm. These differences matter when the nut sits inside a bored housing or against a locating shoulder. Matching only shaft diameter and lead can leave an otherwise plausible replacement unable to fit.



The SFU Internal Recirculation Ball Screw should consequently be specified against one confirmed dimensional drawing. Hole diameter, bolt-circle position and lubrication-port location should follow that same drawing rather than being taken from another SFU table.



Screw-end machining is a separate part of the assembly. Bearing journals, locking threads and the coupling connection must suit the selected supports and drive. Overall shaft length also includes these end features; it is not equivalent to usable travel.



Finally, internal recirculation does not itself define lead accuracy or axial clearance. Those requirements remain separate specifications. For an SFU Internal Recirculation Ball Screw used in reversing motion, state the required clearance or preload rather than treating the SFU designation as a zero-backlash guarantee.
