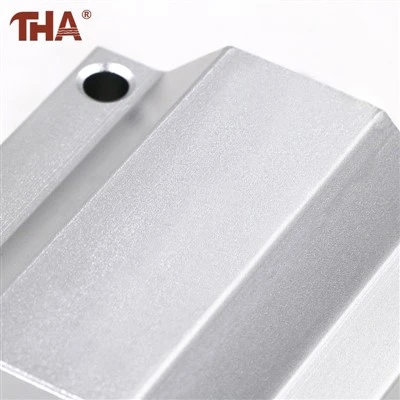

SCE16UU Enclosed Linear Bearing Block
SCE16UU combines a recirculating linear ball bearing with a rectangular aluminium housing for travel along a 16 mm round shaft. The assembled block gives machine builders a flat mounting surface without requiring a separate bearing bore to be machined into the moving component.
Description
Product Details
The SCE16UU housing surrounds a closed linear bearing and carries it as one mounting unit. Four holes on the upper face allow a table, plate or fixture to be secured directly to the block. The bearing inside recirculates balls around the shaft, reducing sliding resistance during straight-line movement.
This is a closed block intended for use on a round shaft that can pass completely through the bearing. It differs from the previously processed SCE16VUU, whose housing configuration is not the same. It is also not a complete rail system: the shaft, shaft supports and aluminium support rail are separate components unless specifically included in the order.
Product Description
A typical installation uses two parallel shafts with one or more bearing blocks on each shaft. Alignment between the shafts is important because the SCE16UU does not compensate for a large mounting error. If the shafts are not parallel, the blocks may become tight at part of the travel or place uneven load on the ball circuits.
Use the block with a shaft of the correct diameter and suitable surface condition. Before final tightening, move the carriage through its complete stroke and confirm that resistance remains consistent. Lubrication should be maintained according to operating speed, load, travel frequency and the amount of contamination present.
The UU designation indicates seals at both ends of the bearing. These seals help limit the entry of dust but do not make the block waterproof or suitable for abrasive contamination without additional protection.
Product Information
| Item | Information |
|---|---|
| Product Model | SCE16UU |
| Product Type | Enclosed linear ball bearing block |
| Nominal Shaft Diameter | 16 mm |
| Housing Form | Rectangular aluminium block |
| Bearing Motion | Recirculating linear ball motion |
| Seal Configuration | Sealed at both ends |
| Shaft Requirement | Round linear shaft with matching diameter |
| Mounting Method | Four top mounting holes |
| Suitable Movement | Straight linear travel |
| Related Published Models | SCE08UU SCE10UU SCE12UU SCE16UU SCE20UU SCE25UU SCE30UU SCE40UU SCE50UU SCE60UU |
| Items Not Automatically Included | Shaft shaft supports and support rail |
| Main Installation Check | Shaft diameter parallelism alignment and lubrication |
| Use Limitation | Not intended to compensate for major shaft misalignment |
FAQ
1. Does the SCE16UU include a shaft and support rail?
No. This page is for the bearing block. Shafts, end supports and supported-rail components should be specified separately unless the quotation states otherwise.
2. What shaft size matches SCE16UU?
The SCE16UU designation corresponds to a nominal 16 mm round shaft.
3. What does UU indicate?
UU indicates seals at both ends of the internal linear bearing.
4. Is SCE16UU the same as SCE16VUU?
No. They use different housing configurations. Their dimensions and installation arrangements should not be treated as interchangeable.
5. Can this bearing block run on an unsupported shaft?
It can run on a matching round shaft, but the required shaft support arrangement depends on span, load and permitted deflection. Longer spans or heavier loads may require continuous shaft support.
6. What should be checked before ordering?
Confirm the complete model, shaft diameter, required quantity, mounting-hole arrangement and whether shafts or supports are also needed.
7. Are custom components available?
We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
About Us
Lishui Guangyuan Industry & Trade Co., Ltd. supplies linear bearings, round shafts, shaft supports and other linear-motion components. Complete assembly drawings can be reviewed to confirm the bearing block, shaft diameter and mounting arrangement before production.
