LM30UU Ball Bushing Bearing

A recirculating-ball linear bushing that rides on a hardened straight shaft — the ball-to-shaft contact keeps friction low and positioning repeatable, at the tradeoff of lower load capacity than a linear guide block.

Description

Product Details

  • Inner diameter 30mm, part of the LM3UU–LM100UU size range
  • Housing: 45# carbon steel; balls: Gcr15 chrome steel; cage: nylon
  • Precision grade H6–H7
  • Finished in silver



Product Description
Because the balls make point contact with the shaft rather than the broader contact area a guide block uses, this bearing runs with very low friction and high repeatability - but that same point contact limits how much load it can carry and how well it tolerates shock impact. It's also not the right choice for high-speed operation: point contact tends to generate more vibration and noise as speed increases, so this bearing is better suited to medium- and low-speed positioning tasks than to high-speed continuous motion. That's a normal tradeoff for this bearing type, not a defect - if your application needs both high speed and heavy load, a linear guide block is usually the better fit.



We build to customer drawings or samples under OEM/ODM, with one year warranty on the product. Lead time is 7–10 days by air for in-stock items, 30–45 days for production plus shipping for made-to-order items.



Model NO.

LM30UU

Inner Diameter

30mm

Size

available

LM3UU-LM100UU

Color

Silver

Material

Housing: 45# carbol steel

Inner ball: chrome steel Gcr15

Cage:nylon

Precision

H6--H7

Feature

Anti-friction,high speed,high precision



Company profile



why choose us

Our email:admin@gyballscrew.com

300kb1

10

years



Our company has decades of manufacturing experience in the bearing industry.

30

countries



The company's products are exported to as many as 30 countries worldwide, with markets spanning Asia, Europe and the United States.

2600㎡

factory



We have always maintained our own production facility, which has expanded continuously throughout our operations. The current factory premises now exceed 2,600 square metres in floor area.


Our factory & quipment





linear stage


linear shaft

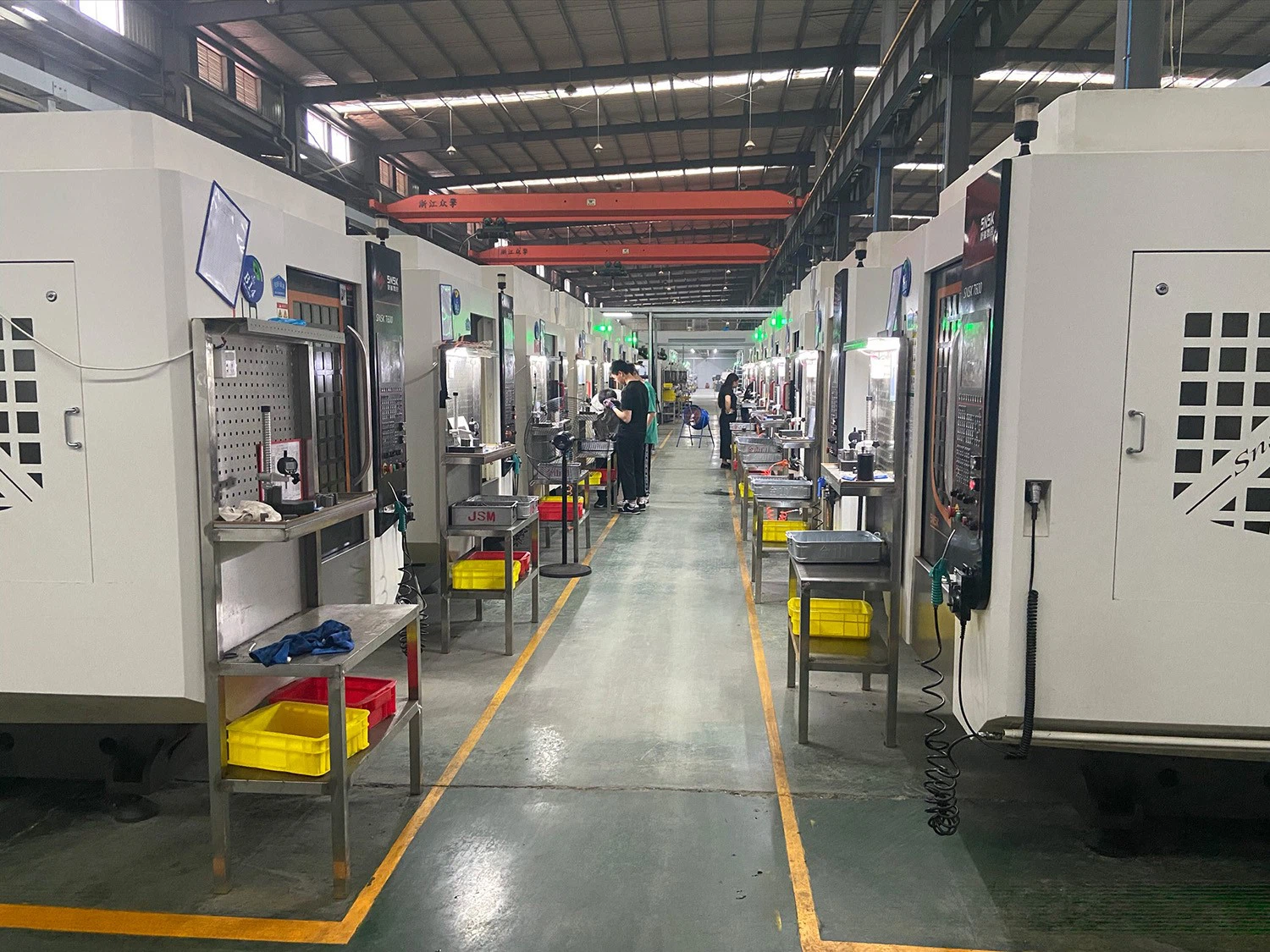

our factory equipment

10

product-950-738

1





Contact us



1

contact us1

product-1915-447

FAQ



1.Q: When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority.



2.Q:What is your lead time?

A:For products in stock, lead time could be 7~10 days if you choose air freight; for items not in stock, 30-45 days for production depends on order size then plus time for shipping.



3.Q: How to proceed an order ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



4.Q: Have items 100% finished in stock?

A: Most items are all well finished in stock, but some items are newly machined according to your requirements.



5.Q: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.
