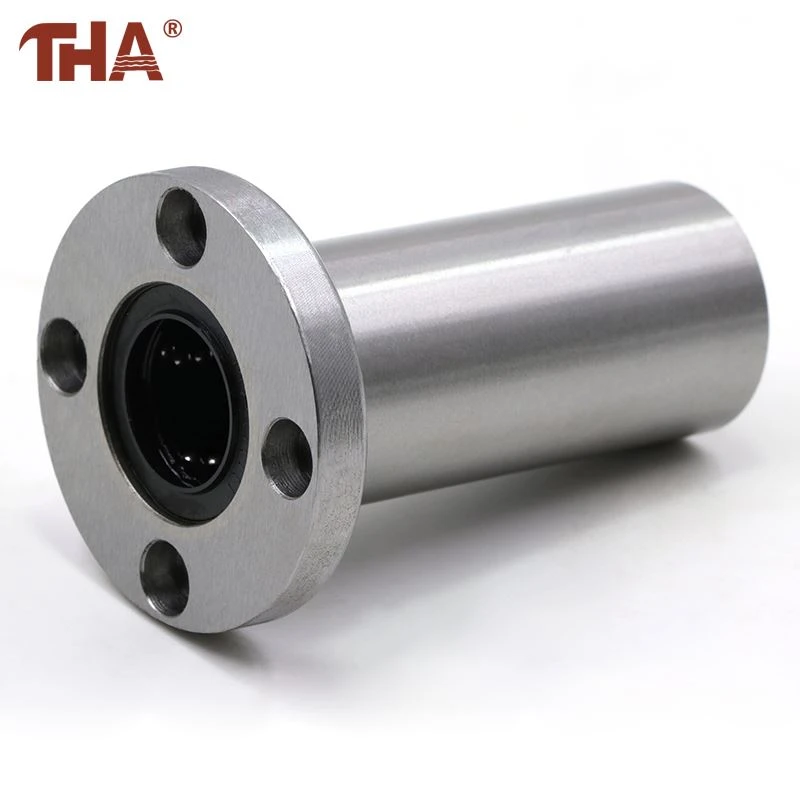

LMF Series Round Flange
Thirteen sizes, one shared design: a round flange bolts the bearing straight to a mounting surface, and the model number tells you exactly which shaft diameter it's built for — no guessing between LMF08UU and LMF20UU, the numbers line up directly with millimeters.
Description
Technical Description
How the Flange Changes Installation
Bolting the round flange directly to a mounting surface removes the need for a separate housing block, which simplifies both the design and the assembly step compared to a housing-mounted bearing. Inside, rows of steel balls circulate as the shaft moves, keeping resistance low and consistent across the stroke.
Reading the Model Number
The number in the model isn't arbitrary - LMF08UU pairs with an 8mm shaft, LMF20UU with a 20mm shaft, and so on up to LMF60UU for a 60mm shaft. The "UU" suffix means seals on both ends. Thirteen sizes cover the range: LMF06UU, LMF08UU, LMF10UU, LMF12UU, LMF13UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU.
What the Shaft Needs to Be
The bearing and shaft always ship as a matched nominal size, and that match only works if the shaft itself is right - hardened, with a proper surface finish. A soft, unhardened shaft wears down quickly under the ball tracks and shortens the bearing's life well before its rated cycle count. These bearings are built for linear travel, not shock loading - sudden impact loads aren't what this design is meant to absorb.
Where It's Used
Small automation units, packaging equipment, printers, measuring equipment, and material-handling mechanisms, along with CNC machine tools and injection molding machines where precision and repeatability matter, and semiconductor or electronics manufacturing equipment where load, speed, and precision all need to hold together at once.
We accept orders as small as a single piece for standard sizes. Please contact us for delivery lead time based on order quantity.
Specification Table
| Item | Specification |
|---|---|
| Product Name | LMF Round Flange Linear Bearing |
| Material | GCr15 bearing steel |
| Flange Type | Round flange |
| Seal Type | Sealed at both ends (UU) |
| Models | LMF06UU / LMF08UU / LMF10UU / LMF12UU / LMF13UU / LMF16UU / LMF20UU / LMF25UU / LMF30UU / LMF35UU / LMF40UU / LMF50UU / LMF60UU |
| Matching Shaft Diameter | 6mm to 60mm, depending on model |
| Suitable Shaft | Hardened round linear shaft with proper surface finish |
About Us
Own factory, independent design, roughly 26,000 square meters. Over 10 years of experience in linear motion components. Products exported to more than 25 countries across Asia, Europe, and the United States, with quality backed by certification and 24-hour service support.
FAQ
Q: Are you a trading company or a manufacturer?
A: Both - we manufacture in-house and also handle trading orders.
Q: Where is your factory located?
A: Lishui, Zhejiang, China.
Q: Can I add my own logo?
A: Yes - your logo can go on the product and the packaging box. We offer OEM service covering stock size, logo, and packaging.
Q: Do you provide samples, and are they free?
A: Some samples are free, depending on the item's value and the quantity requested. Contact us with your specifics and we'll confirm.
Q: What's your best price?
A: Standard LMF sizes are ready to order at listed pricing. Custom specifications need a quote, since cost depends on order quantity, material, logo, packaging, and whether the size is standard or non-standard
