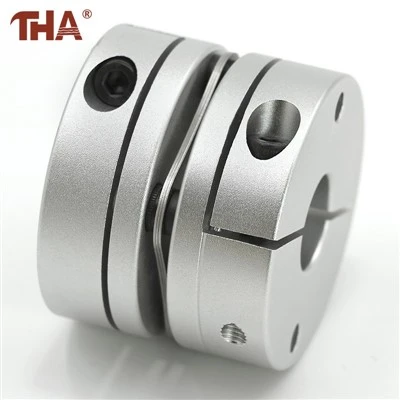

Zero Backlash GS Diaphragm Coupling
A single-diaphragm coupling with internal clamping hubs for transmitting rotary motion between servo or stepper motor shafts and driven components.
Description
Product Details
The GS coupling uses high-strength aluminum alloy hubs connected by a 304 stainless steel diaphragm. Its internal clamping structure holds the shafts without introducing the clearance associated with loose mechanical connections.
The metal diaphragm provides high torsional rigidity and allows accurate transmission in both forward and reverse rotation. Its low-inertia construction is suited to servo motors, stepper motors, ball screws, and compact positioning mechanisms.
Product Description
Unlike an elastomer coupling, this design transmits torque through a flexible metal diaphragm and does not require lubrication. The diaphragm accommodates limited angular and axial installation deviation while maintaining responsive shaft control.
Because this is a single-diaphragm design, it should not be selected to correct substantial parallel shaft offset. Bore diameters, shaft fit, rated torque, maximum speed, allowable deviation, and clamping torque must be checked against the selected GS model before installation.
We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
company profile
We are always at your service when you need
Lishui Guangyuan Industry & Trade Co., Ltd. is a leading manufacturer specializing in high-precision linear motion components, including ball screws, linear guides, sliders, and motion modules. Many of our products hold national patents and meet international certification standards.
Located in Lishui, Zhejiang, China, our facility spans over 26,000 square meters and employs more than 200 professionals, including over 50 senior engineers. With advanced manufacturing equipment and a rigorous quality management system, we ensure excellence throughout the entire production process-from raw materials to final packaging.
our own factory
years experience
exporting coturies
employee
Our address
No.979, Qingchun Street, Liandu District, Lishui, Zhejiang, China.
Kristy: +8617769815516
Abby: +8618967093658
admin@gyballscrew.com
FAQ
1. Q:OEM/ODM accepted?
A: Yes, Please send you new product drawings or sample to us if you have, and we can custom-made as your
required. We will also provide professional advices of the products to make the design to be maximize the performance.
2. Q. What is the price of the product ?
A. Our prices are based on the size and type of material, if you can give me the information,then we can give you an estimated price is for reference only We can do any size and any color.
3. Q. If you can not find the product on our website,how do you do?
A: Please send us inquiry with product pictures and drawings by email or other ways you prefer, we'll check if we could.
4.Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
