GFC Elastomer Jaw Coupling
A three-piece aluminium coupling with two jaw hubs and a polyurethane spider for transmitting torque between rotating shafts.
Description
Products Specification
| Item | Specification |
|---|---|
| Product Name | GFC Elastomer Jaw Coupling |
| Coupling Type | Three-piece flexible jaw coupling |
| Hub Material | Aluminium alloy |
| Flexible Element | Polyurethane spider |
| Model Range | GFC14 GFC20 GFC25 GFC30 GFC40 GFC55 GFC65 GFC80 GFC95 |
| Lubrication | Not required |
| Main Functions | Torque transmission vibration cushioning and limited misalignment compensation |
| Typical Applications | Motors ball screws pumps positioning equipment and general machinery |
| Ordering Information | Model two bore sizes fastening method torque speed and shaft dimensions |
Products Details
Despite the current page name, this is a GFC jaw coupling rather than a flexible beam coupling. Its construction consists of two aluminium hubs with an elastomer spider fitted between their interlocking jaws.
The spider separates the metal hubs, cushions minor shock loads and provides electrical isolation between the connected shafts. The coupling operates without lubrication.
Product Description
GFC couplings are used between motors and driven components such as ball screws, pumps and positioning mechanisms. They can accommodate limited angular, parallel and axial misalignment, but they should not be used to correct a poorly aligned installation.
The polyurethane spider is a wearing component and should be inspected if backlash, vibration or operating noise increases. Before ordering, confirm the outside diameter, overall length, bore sizes, fastening method, torque, speed and shaft alignment. Both bores may be machined to suit the connected shafts within the dimensional limits of the selected model.
We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
Company profile
Lishui Guangyuan Industry & Trade Co., Ltd. specializes in high-precision linear motion products, including ball screws, linear guides, sliders, and modules. Many products hold national patents and meet international certification standards. Located in Lishui, Zhejiang, China, the company spans over 26,000 square meters with 200+ employees, including 50+ senior technicians. Advanced facilities and strict quality control ensure excellence from raw materials to final packaging.
Our products are widely used in industries such as medical, printing, chemical, woodworking, and automation. Known for cutting-edge technology and exceptional service, we are trusted by clients worldwide. Committed to quality and efficiency, we look forward to collaborating with you to create a bright future.

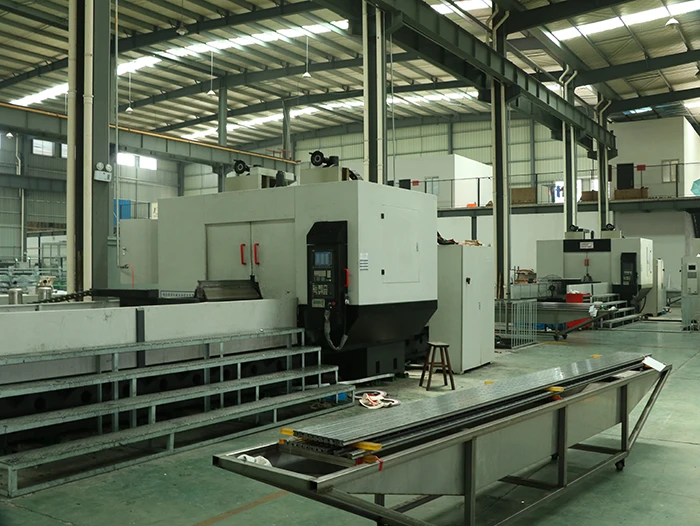

Our factory & quipment
Lishui Guangyuan Industry & Trade Co., Ltd.
Kristy: +8617769815516
Abby: +8618967093658
Email: admin@gyballscrew.com
FAQ
1.Q: Do you accept small order?
A: If your order bearings are our standard size, we accept even 1pcs.
2.Q:How can we guarantee quality?
A:All the products will be 100% checked before the shipment,also will take video or pictures send to you
3.Q: Can I order shaft bore couplings that are not listed in the catalog?)(Additional machining service for coupling shaft hole)
A:Of course.It can be customized.
4.Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
