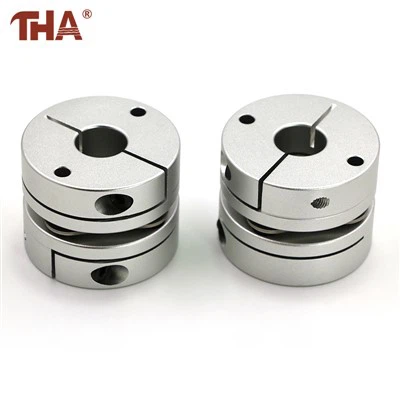

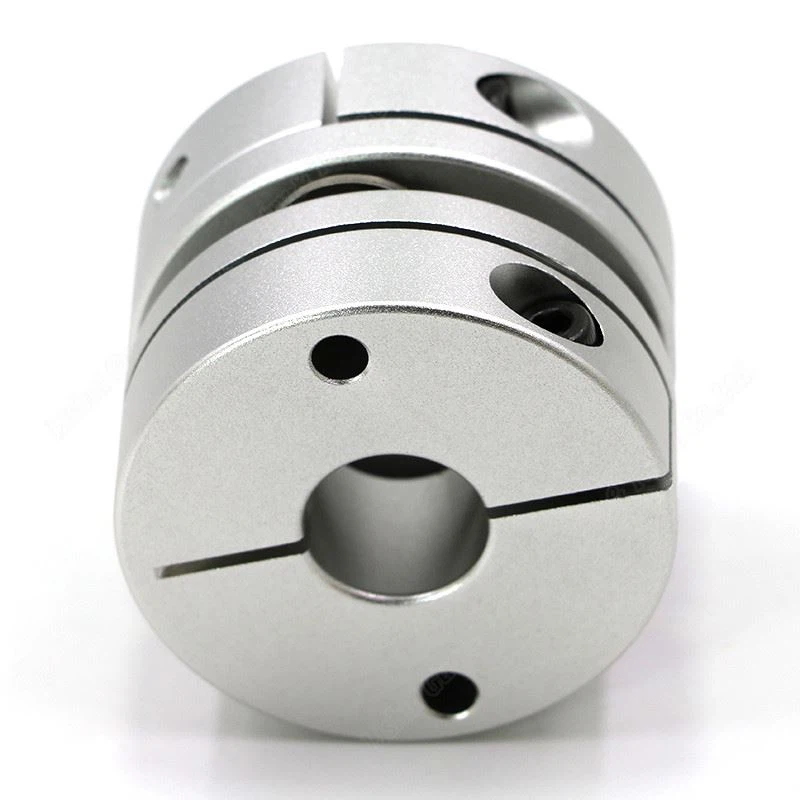

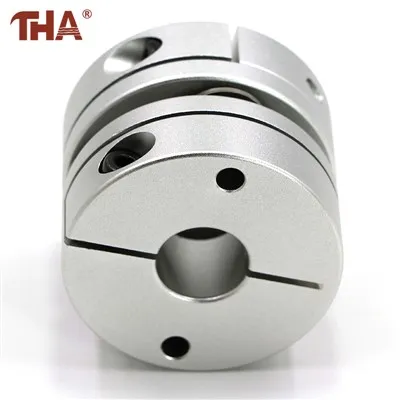

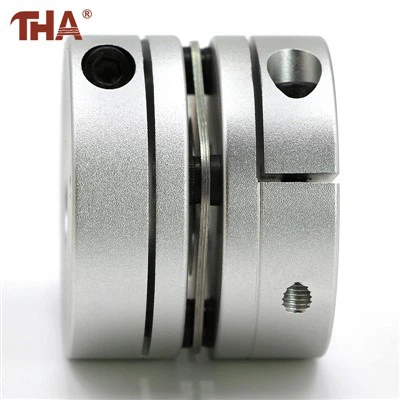

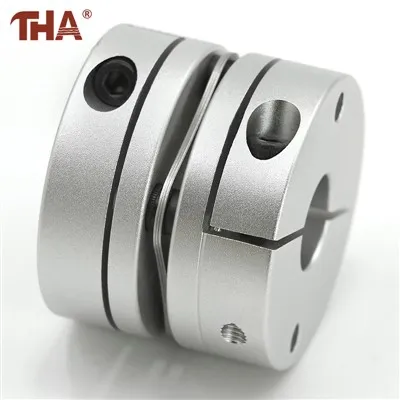

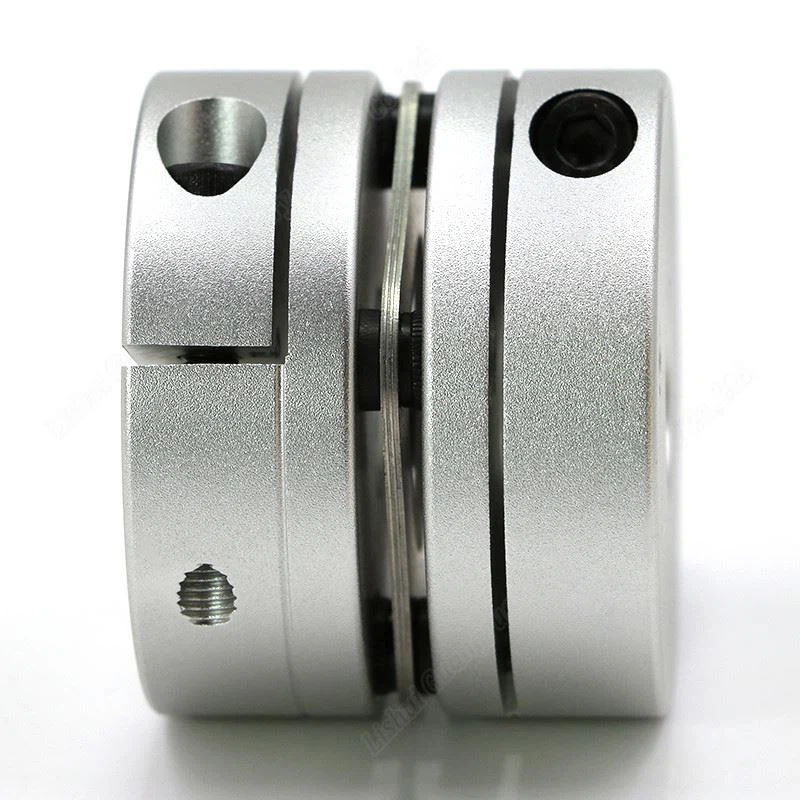

Aluminium Coupling

The aluminium diaphragm coupling consists of at least a set of metal laminations (metal or synthetic resin) and two hubs ((single diaphragm coupling). The metal laminations are fastened to the hub by pins, and generally will not loosen or cause The recoil between the disc and the hub.

Some manufacturers can provide two sets of metal laminated couplings, with a rigid part in the middle, and two sides connected to the hub (double diaphragm coupling).



Product Details

Lishui Guangyuan Industry & Trade Co., Ltd. is one of the professional manufacturers and suppliers of professional CNC accessories in China. "Excellent quality, good faith" is Lishui guangyuan business purposes. The company to quality survival,service and development, always to honor the contract,keep promise as the purpose. Welcome newand old customers to inquire!



Product Description

Several groups of diaphragms (stainless steel thin plates) are alternately connected with the two halves of the coupling with bolts. Each group of diaphragms is composed of several stacked ones. The diaphragms are divided into connecting rod type and different shape of the whole piece type. The diaphragm coupling relies on the elastic deformation of the diaphragm to compensate for the relative displacement of the two shafts connected. It is a high-performance flexible coupling with strong metal components. It does not require lubrication, and has a compact structure, high strength and long service life. , No rotation gap, not affected by temperature and oil pollution, with acid and alkali resistance and corrosion resistance, suitable for high temperature, high speed, and corrosive medium shafting environment.



Product Information
Product Name	Aluminium Coupling
Material	Aluminum Alloy
Application	Products are widely used in automation equipment, placement machine, laminating machine, automationWelding assembly equipment, instrumentation, medical equipment, printing equipment, precision machinery equipment, grinding machines, and automatic machinery equipment Manufacturing, all kinds of non-standard production lines, etc.

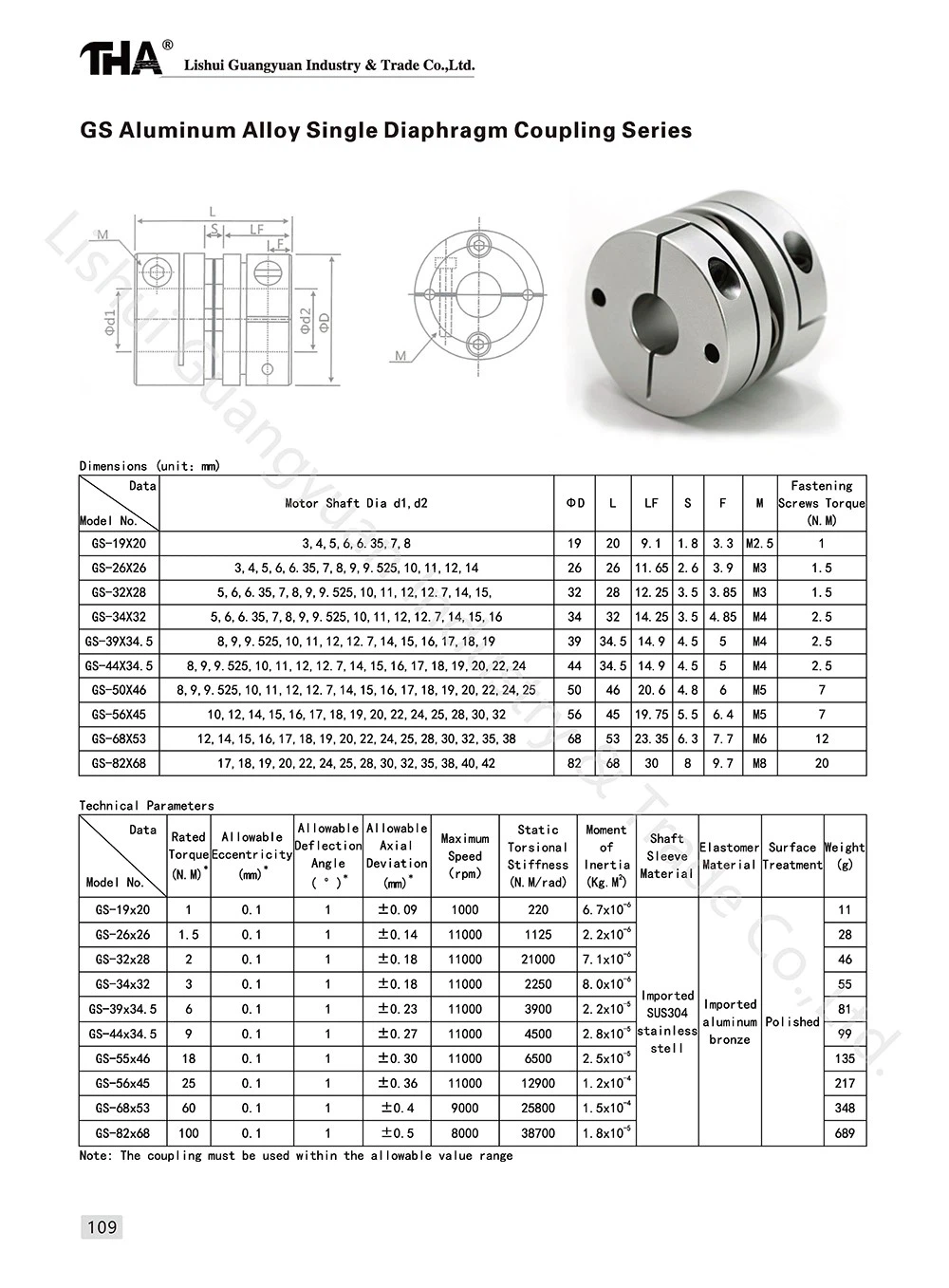

Model No.	GS19x20, GS26x26, GS32x28, GS34x32, GS39x34.5,  GS44x34.5, GS50x46, GS56x45, GS68x53, GS82x68
Our services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery time	3~7 days for sample order, 15~20 days for bulk order. Depends on the actual shipping situation.





About Us

We have first-class testing equipment to detect bearing various data and control the quality of the items. Whenever they must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.So we can get the trust of a large customer, and supply them for several years.
