KR KRV Paired Size Cam Followers

Product Details

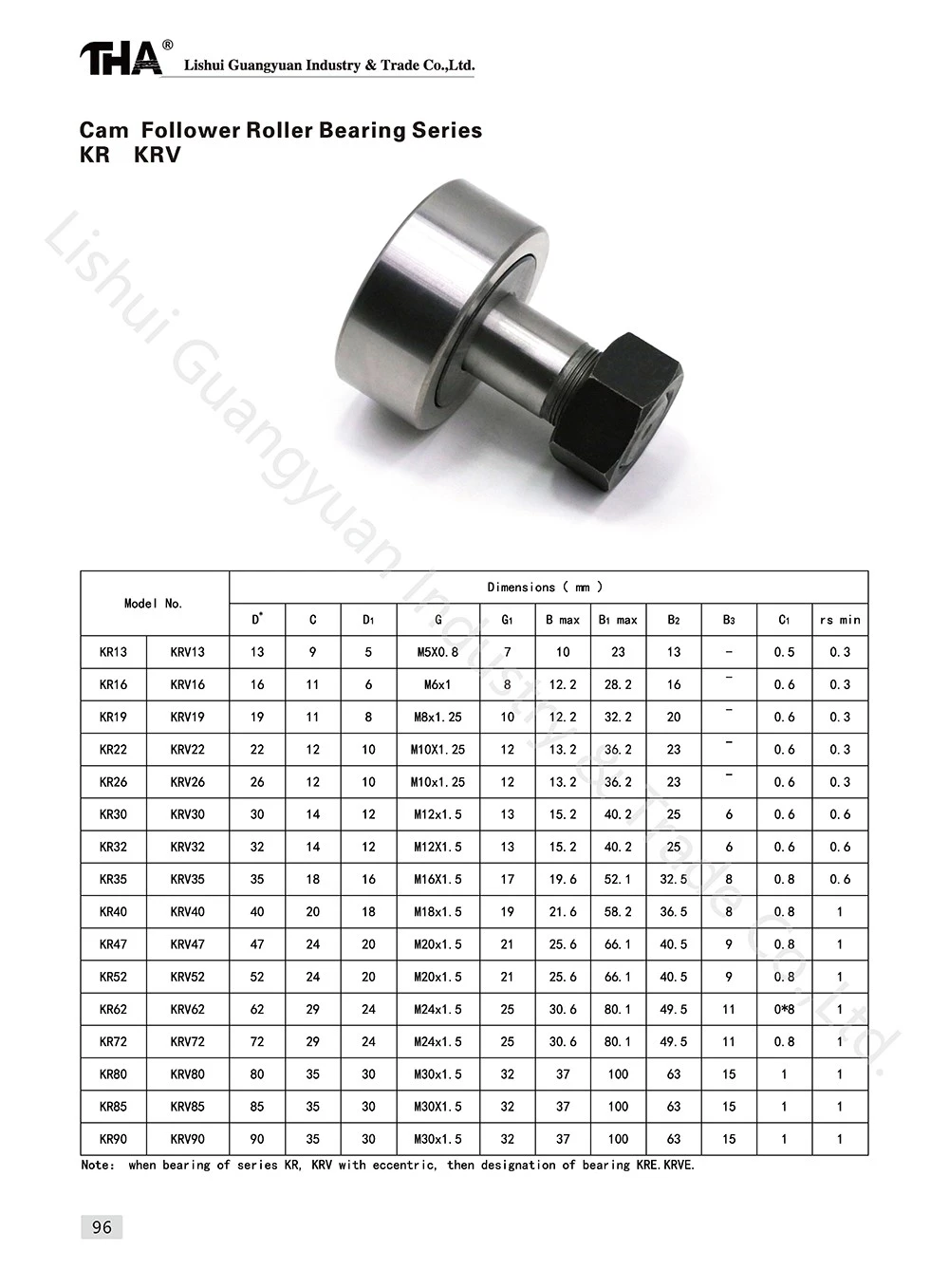

The series begins with KR13 and KRV13 and extends through KR90 and KRV90. Each numbered pair shares the roller diameter, roller width, stud diameter and thread specification shown in the dimensional chart.



For example, KR19 and KRV19 both have a 19 mm outer diameter, an 11 mm roller width and an M8×1.25 mounting thread. This allows a machine designer to retain the same basic mounting envelope while selecting the internal roller arrangement for the operating condition.



KR keeps the needle rollers separated by a cage. This arrangement reduces roller-to-roller contact and is used when repeated rotation or higher running speed has greater importance. KRV fills more of the available internal space with uncaged needle rollers and is selected when radial load capacity takes priority over speed.



Product Description

Selection can be divided into two decisions. The outside dimensions establish whether the cam follower fits the track and mounting plate. The KR or KRV designation then determines the internal construction.



A matching number does not mean that the two versions have identical operating limits. Load rating, permitted speed, lubrication and sealing must still be checked from the complete designation.



The dimensional chart also identifies eccentric versions. When adjustment of the roller position is required, the series changes from KR to KRE or from KRV to KRVE. The eccentric type should be selected before preparing the mounting hole because its installation arrangement is different from the standard concentric stud.



Product Information

Item	Specification
Product Families	KR and KRV
Construction	Stud-mounted cam follower
KR Internal Design	Caged needle rollers
KRV Internal Design	Full-complement needle rollers
Published Size Range	KR13 KRV13 through KR90 KRV90
Roller Diameter Range	13 mm to 90 mm
Thread Range	M5×0.8 to M30×1.5
Paired Model Feature	Shared principal mounting dimensions
Eccentric Designations	KRE and KRVE







FAQ

Do KR19 and KRV19 use the same mounting dimensions?

The published chart gives both models a 19 mm roller diameter, 11 mm roller width and M8×1.25 stud thread. Their internal roller arrangements remain different.

Which series is intended for greater running speed?

KR is normally the first series considered because its cage separates and guides the needle rollers. The permitted speed must still be confirmed for the selected model.

When should KRV be considered?

KRV is used when the application benefits from a full complement of needle rollers and places greater emphasis on radial load than maximum speed.

What do KRE and KRVE mean?

They identify eccentric versions of the corresponding KR and KRV cam followers. The eccentric arrangement permits positional adjustment against the track.

Can one standard cam follower be ordered?

We accept orders as small as a single piece for standard sizes. Please contact us for delivery lead time based on order quantity.



About Us

Lishui Guangyuan Industry & Trade Co Ltd supplies cam followers, track rollers and needle roller bearings for industrial motion systems. Selection can be checked from the complete bearing designation and the machine mounting dimensions.
