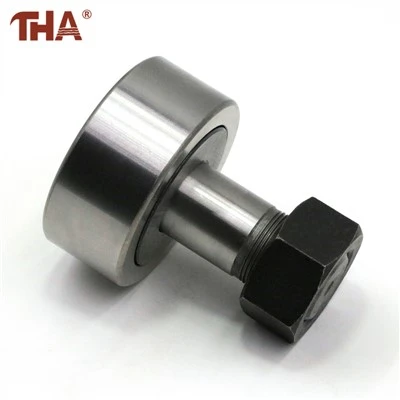

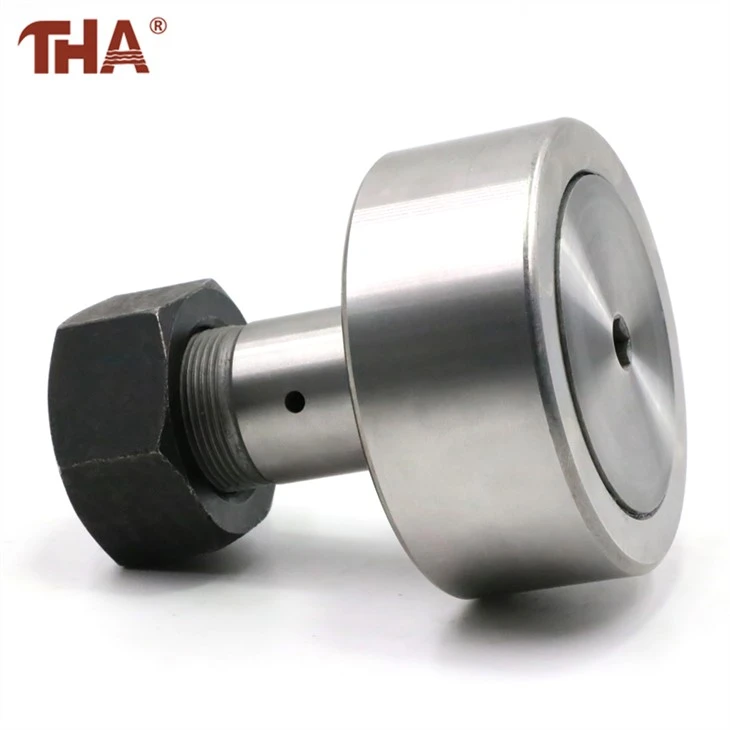

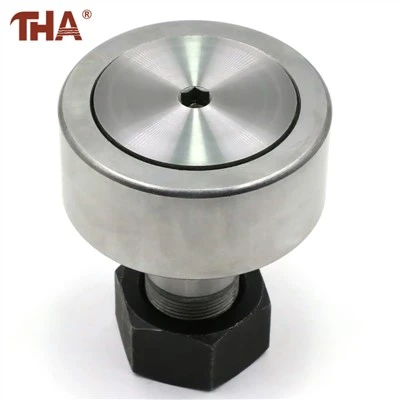

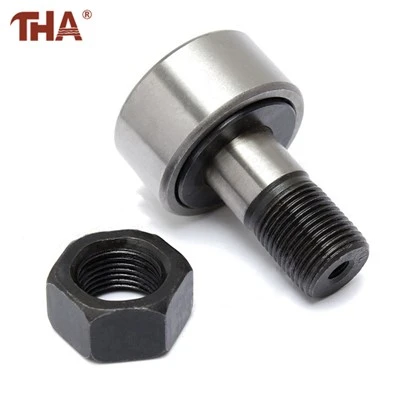

KR19 Cam Follower

The outer ring of the roller bearing adopts a full complement cylindrical roller bearing with a thicker outer ring wall. The outer diameter surface of the roller has a cylindrical shape and an arc shape, which can be designed to match the raceway surface according to the application. Using this outer ring, the roller can roll directly on the raceway and can withstand heavier loads and shock loads.



Product Details

Lishui Guangyuan Industry & Trade Co., Ltd. is one of the professional manufacturers and suppliers of professional CNC accessories in China. Our Principle: "Credibility Supremacy, and Customer First"; Our Promise: "High quality products, and Excellent Service"; Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"; Our Aim: "Develop to be a leader in the power transmission parts industry in the world".



Product Description

Composition of combined roller bearings

1) Main roller

The main roller is the most important bearing body in a set of composite rollers. It mainly bears vertical load and impact load, and has strong impact resistance, wear resistance and corrosion resistance. Since the main roller is a full complement roller bearing, it can also be used alone as a one-way bearing.



2) Side roller

The side roller is the second bearing body in a set of composite rollers, which mainly bears horizontal load, and also has strong impact resistance, wear resistance and corrosion resistance. The side rollers are designed with no inner ring and full needles, and a mandrel replaces the inner ring and the shaft head to carry the load.



3) Shaft head

The shaft head is used as the connection part of the composite roller and the machine equipment. Usually the shaft head head is designed with a chamfer for easy installation. The shaft head can be directly welded to the equipment, or the shaft head can be welded to the connection with a round hole. Then assemble the connecting board and the equipment on the board.



4) Cover plate

The function of the cover plate is to fix the side rollers installed inside the shaft head and the main rollers outside the shaft head with nuts and thread glue on the shaft head and tail.



Product Information
Product Name	Servo Coupling
Material	High grade bearing steel, Gcr15
Advantages	1. Made of high grade bearing steel, more durable and longer working life. 2. Male thread type, with cylindrical roller, have higher load capacity. 3. It particularly suitable for the occassions when radial space is limited. 4. The utility model is convenient to carry, and the screw head is also convenient to disassemble and assemble.
Model No.	KR13, KR16, KR19, KR22, KR26, KR30, KR32, KR35, KR40, KR47, KR52, KR62, KR72, KR80, KR85, KR90
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery time	3~7 days for sample order, 15~20 days for bulk order. Depends on the actual shipping situation.
