HGWS60K Modular XY Positioning System



Product Details

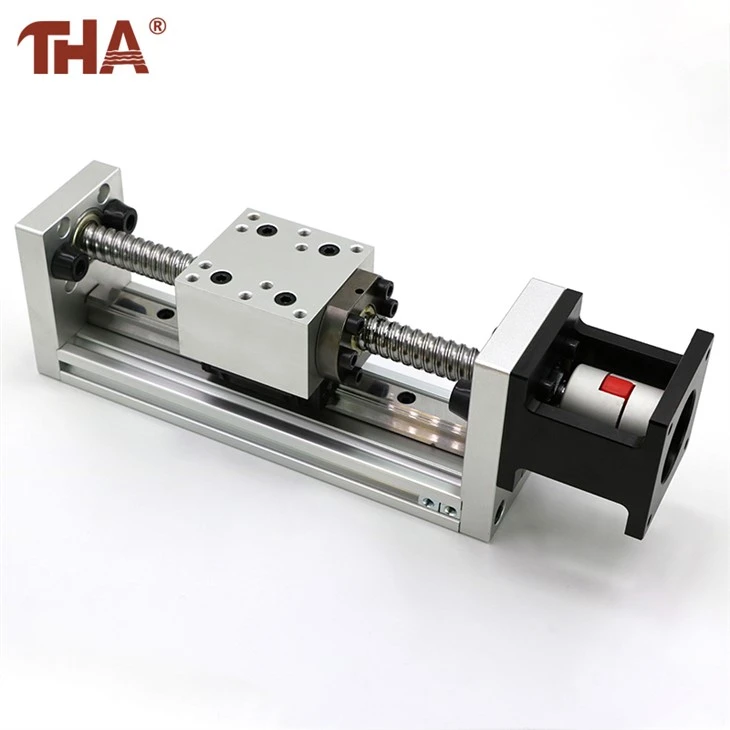

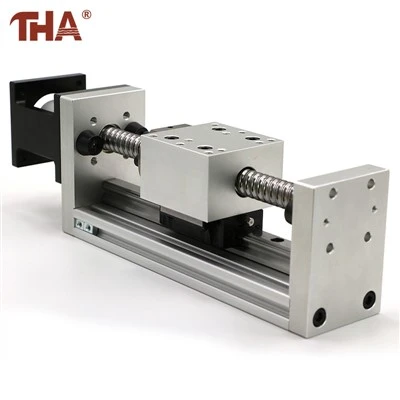

Each axis uses a motor-driven ball screw to move its carriage along a linear guide. The bearing-steel guide components support the moving load, while the aluminum base provides the structural mounting surface.



For XY operation, two modules are installed at right angles. One axis carries the second, so the lower axis must be selected for the combined mass of the upper module, tooling, and workpiece.



Product Description

The HGWS60K can be incorporated into handling equipment, inspection systems, semiconductor machinery, medical equipment, solar-production machinery, machine tools, and other automated installations.



The original page calls the product an XY actuator but lists only one HGWS60K model and one stroke range. It does not confirm that every order includes two complete axes. The quotation must therefore identify whether the requirement is for one HGWS60K module or an assembled XY system.



For a complete XY assembly, provide the X-axis stroke, Y-axis stroke, payload, speed, motor type, mounting orientation, cable direction, and required positioning performance. Both axes should be specified separately rather than treated as identical by default.



We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.



Product Information

Item	Specification
Product Name	HGWS60K Modular XY Positioning System
Model	GY HGWS60K
Product Form	Single module or assembled XY system
Drive	Motor-driven ball screw
Guidance	Linear guideway
Stroke Range	100 to 1200 mm
Stroke Definition	To be specified separately for each axis
Base Structure	Aluminum base
Guide Components	Bearing steel
Motor Configuration	Multiple arrangements available
Typical Applications	Automation semiconductor machinery medical equipment solar equipment and machine tools
Required Selection Data	X stroke Y stroke payload speed motor mounting direction and accuracy
Customization	Available according to drawings or samples











FAQ

1. Does the product include both X and Y axes?
The original page does not clearly define the supplied quantity. State whether one module or a complete two-axis assembly is required.

2. Can the two axes have different strokes?
Yes. The X and Y travel requirements should be listed separately in the drawing.

3. How should the lower axis be selected?
Its moving load must include the upper axis, carriage tooling, cables, and workpiece.

4. Are the motors and controller included?
The page lists multiple motor configurations but does not define a standard controller package. Specify the required motor and control scope.

5. Can the system be expanded into an XYZ arrangement?
A third module can be added when the support structure, vertical load, and connection interfaces are properly selected.



About Us

Lishui Guangyuan Industry & Trade Co Ltd manufactures ball-screw modules, linear stages, guides, and related automation components. Single-axis products and drawing-based XY or XYZ assemblies are available under OEM and ODM production.
