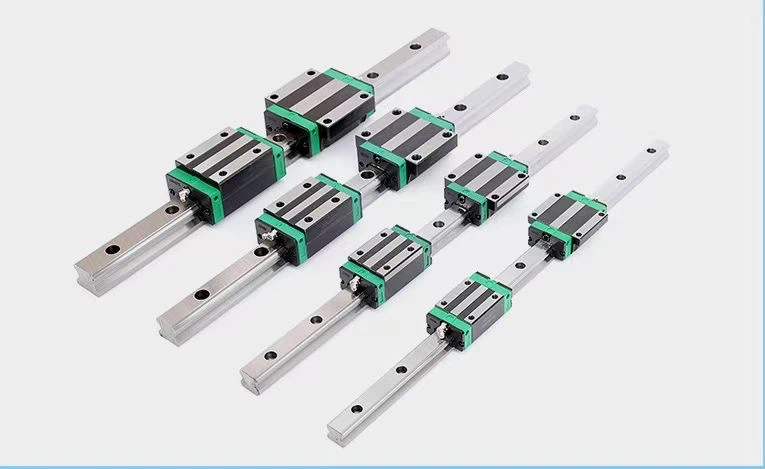

Mini Type Linear Guide Slide Rail
A small profiled rail and carriage designed for compact linear-motion assemblies. The carriage runs on recirculating balls and can be mounted directly beneath a moving plate.
Description
Product Details
The rail provides the running tracks, while the carriage contains the ball circuits and mounting threads. Both parts must belong to the same series and size. A carriage from another miniature-guide family may look similar but will not necessarily fit the rail.
Stainless steel and bearing-steel versions are available. Material, rail width, carriage type and rail length should be confirmed from the product drawing before an order is placed.
Product Description
This guide is intended for equipment with limited installation space, such as small positioning mechanisms, printers, laboratory equipment and compact automation units.
The mounting surface must be flat and clean. Tightening the rail onto an uneven base can distort it and make the carriage run unevenly. The carriage should also remain on its rail or on a transfer rail during handling so the internal balls are not displaced.
Rails and carriages may be supplied separately or as a matched set. The required quantity must be stated in the order.
We accept orders as small as a single piece for standard sizes. Please contact us for delivery lead time based on order quantity.
Product Information
| Item | Specification |
|---|---|
| Product Name | Compact Miniature Linear Guide Rail |
| Product Type | Profiled linear rail and carriage |
| Rolling Element | Recirculating steel balls |
| Material Options | Stainless steel or bearing steel |
| Rail Length | Selected according to the order |
| Carriage Options | Selected by matching series and rail size |
| Supply Format | Rail carriage or matched set as specified |
| Main Use | Compact linear positioning assemblies |
| Selection Details | Rail width carriage type length and quantity |
about us
who choose us?
Lishui Guangyuan Industry & Trade Co., Ltd. is a leading manufacturer of high-precision linear motion components, including ball screws, linear guides, sliders, and motion modules. Many of our products hold national patents and meet international certifications. Based in Lishui, Zhejiang, China, our 26,000 m² facility houses over 200 staff, including more than 50 senior engineers. With advanced equipment and strict quality control, our products are widely used in medical, printing, chemical, woodworking, and automation industries. Trusted by clients worldwide, we welcome global cooperation to build a successful future together.
one-stop solution
professional team
high quality
contact us
Lishui Guangyuan Industry & Trade Co., Ltd.
Kristy: +8617769815516
Abby: +8618967093658
Email: admin@gyballscrew.com
Add: No.979, Qingchun Street, Liandu District, Lishui, Zhejiang, China.
FAQ
1.Q:If can accept OEM/ODM?
A: Accept custom-made linear guides with high precision and length as your requirements.
2.Q:If can offer sample before order?
A:Yes, we can offer free sample for quality test.
3.Q:Is it your company is factory or Trade Company?
A:We have our own factory; our type is factory + trade.
4.Q: Could you tell me the material of your bearing?
A:We have chrome steel, carbon steel, and stainless steel material.
5. Q:Could you tell me the packing of your goods?
A:Single plastic bag then put in single box, and then put in carton or wooden case, at last packing in pallet.
