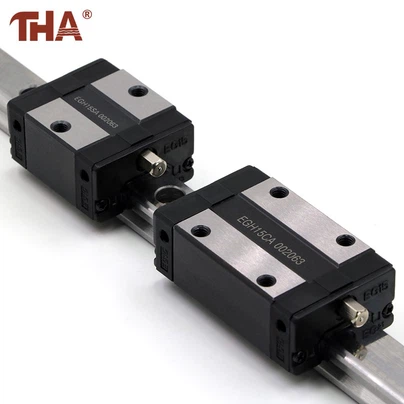

EGH Low Profile Linear Guide
A low-profile recirculating-ball guide system available with EGH15 through EGH30 blocks for compact industrial linear motion assemblies.
Description
Product Details
The EGH series uses a compact square carriage running on a matching EGR profiled rail. Internal steel balls circulate between the block and rail raceways, providing guided movement with rolling contact.
Available nominal sizes are 15, 20, 25 and 30, with SA and CA block configurations. Each block must be matched with an EGR rail of the same size. Accuracy class, preload, rail length and mounting dimensions must be specified when ordering.
Product Description
As the EGH block travels along the rail, the balls continuously recirculate through internal return paths. The low assembly height makes this series suitable for machinery where vertical installation space is limited.
Applications include automation equipment, compact machine tools, measuring systems and industrial positioning mechanisms. Mounting surfaces must be flat and aligned, and the raceways require appropriate lubrication. EGH blocks are not interchangeable with miniature MGN or MGW rails simply because both products have compact dimensions.
We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
Product Information
| Item | Specification |
|---|---|
| Product Name | EGH Low Profile Linear Guide |
| Series | EG |
| Block Type | Low profile square carriage |
| Common Models | EGH15SA EGH15CA EGH20SA EGH20CA EGH25SA EGH25CA EGH30SA EGH30CA |
| Compatible Rail | Matching EGR rail of the same nominal size |
| Nominal Sizes | 15 mm 20 mm 25 mm and 30 mm |
| Rolling Element | Recirculating steel balls |
| Main Material | Bearing steel |
| Supply Form | Block only or matched rail and block assembly |
| Selection Requirements | Confirm model size rail length accuracy class and preload |
