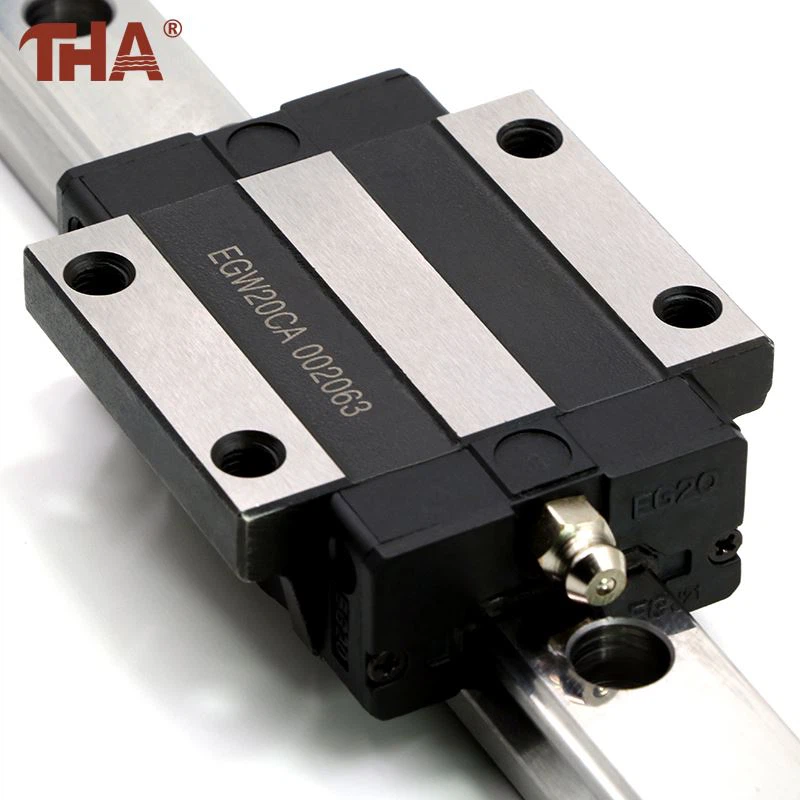

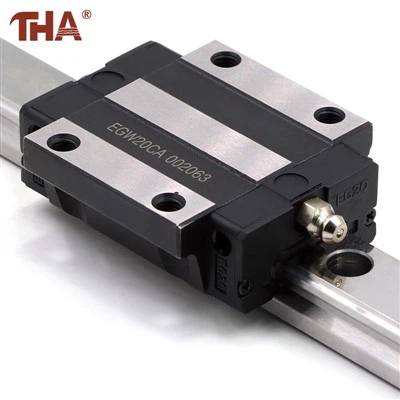

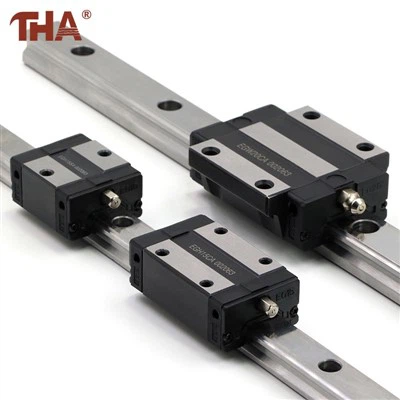

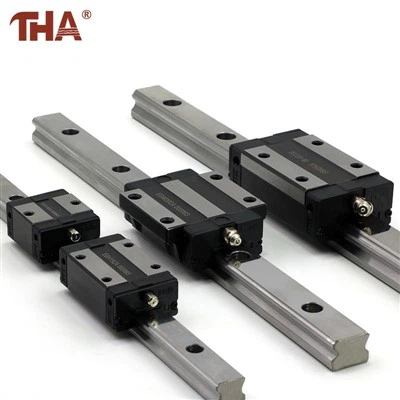

EGW Self-Aligning Guide Rail

Rolling balls between the rail and block cut the coefficient of friction to roughly 1/50 of a traditional sliding guide, and the restraint between rail and block lets it carry load in both the up-down and left-right directions at once - not just one axis, which is what makes it worth pairing with a precision ball screw instead of a plain slideway.

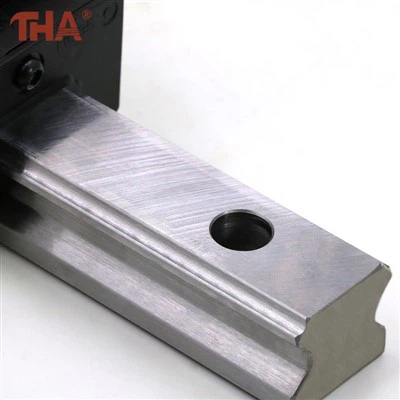

The raceway itself is cut as a circular arc with contact points set at 45 degrees, and that geometry does two things. First, it gives the rail a self-aligning capability - small installation errors from surface irregularities get absorbed through slight elastic deformation and a shift in contact point, so the rail doesn't need a perfectly machined mounting surface to run smoothly. Second, that same wide contact width between ball and raceway is why the rail holds equal load ratings in the radial, reverse-radial, and lateral directions - high rigidity in all four directions rather than being strong one way and weak another.



We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.















1.Q:Do you accept small orders?

A:If your order bearings are our standard size, we accept even 1pc.



2. Q:Why did you choose us?

A.We provide the best quality bearings with reasonable price, low friction, low noise and long service life.

B.The best service provided by well-trained international sales team.

C.We have10+ years experienced factory.



3.Q: How long has your company been in this field?

A: We have been focusing on automation machinery parts for ten years, and our products are sold all over the world, such as Europe, America, Asia, Southeast Asia, Africa and other places



4.Q: How is the order process?

A:Price and payment arrangement - > confirmation of sample - > confirmation of batch payment - > A5 Production - > finished products - > inspection (photos or physical objects) - > balance - > delivery - > after-sales service.



5.Q: If you can't find the product on our website,what do you next?

A:Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
