SFU1610 Single Nut Ball Screw video

SFU1610 Single Nut Ball Screw

A 57 mm single nut, a flange with two flats and an M6 lubrication port define the SFU1610 mounting envelope. The 16 mm shaft provides 10 mm of nominal travel per revolution, with a left-hand version also listed in Guangyuan’s catalog.

Description

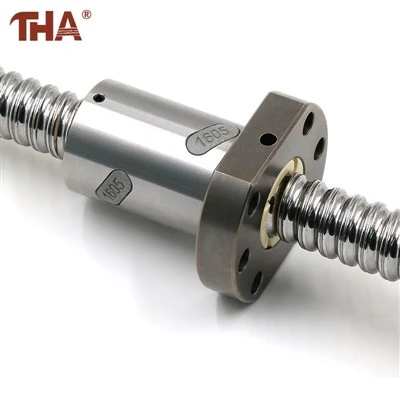

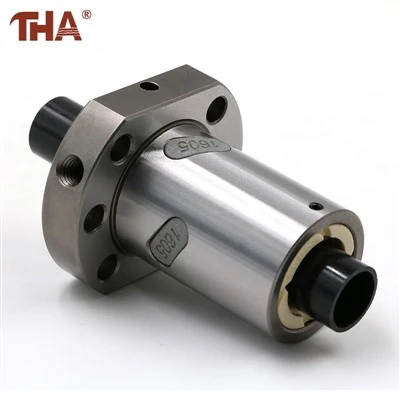

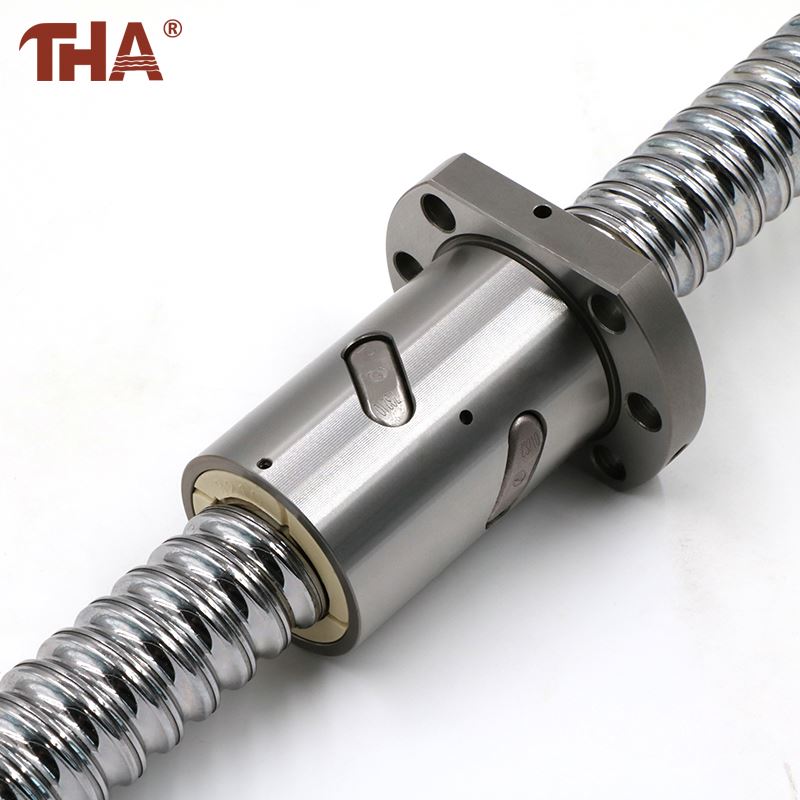

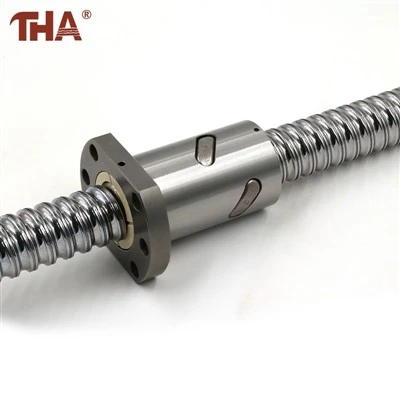

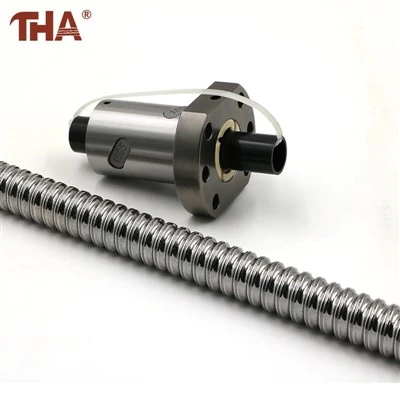

The SFU1610 Single Nut Ball Screw connects to the moving saddle through a flanged nut. Its mounting shape is worth examining before designing the housing: the flange has a 48 mm outside diameter, but two opposite flats reduce the dimension across those faces to 40 mm. This gives the bracket designer two different envelope dimensions to work with, rather than a simple circular outline.



The cylindrical nut body measures 28 mm in diameter. That dimension defines the body clearance, while the flange face provides the axial attachment interface. The drawing's hole layout must be considered separately; an opening large enough for the nut does not establish that the fastening positions will align.



Nut and screw detail Catalog specification
Full model SFU1610-3
Shaft diameter / lead 16 mm / 10 mm
Nut body diameter D / length L 28 mm / 57 mm
Flange diameter A / across flats H 48 mm / 40 mm
Flange thickness B 10 mm
Lubrication connection Q M6
Ball diameter / circuit notation 3.175 mm / 1 × 3
Dynamic Ca / static Coa 721 kgf / 1,249 kgf



The M6 connection is identified as an oil hole in the drawing. Its position should remain accessible through the surrounding housing, either directly or through the selected lubrication connection. A close-fitting enclosure that covers the port would complicate servicing after assembly.



Inside the nut, the catalog specifies 3.175 mm balls and a circuit notation of 1 × 3. These details identify the listed configuration of the SFU1610 Single Nut Ball Screw. The dynamic and static ratings belong to that configuration; they should not be copied from another 16 mm screw with a different lead or circuit arrangement. The ratings are expressed in kgf, not kilograms of permissible table payload.



The left-hand option is marked in the catalog

SFU1610-3 carries the catalog's star symbol, which indicates that a left-hand helix can be produced. This is useful when the mechanical arrangement requires the opposite direction of nut travel for the same direction of shaft rotation.



For a replacement driven through an existing gearbox or shared transmission, recording handedness avoids relying on diameter and lead alone. A left-hand nut also requires its corresponding left-hand shaft; it is not a conversion made by reversing the nut on a right-hand screw.



The SFU1610 Single Nut Ball Screw designation does not, by itself, identify the supplied handedness. That requirement belongs on the drawing and order specification.



45

3

5



About Us

Guangyuan accepts drawing-based OEM/ODM enquiries for SFU1610, including finished shaft length, bearing journals, locking threads and coupling-end dimensions. Specify right-hand or left-hand manufacture together with the nut and end-machining requirements. The minimum order quantity is 10 nuts or 10 screw shafts, according to the item ordered.
