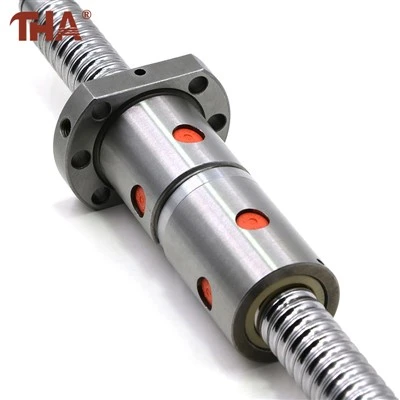

DFU2505 Preloaded Double Nut Ballscrew

Product Details

The number 2505 describes the screw size rather than its overall length: 25 mm nominal diameter and 5 mm advance per turn. The required finished length is determined separately for each machine.



A DFU nut contains two working sections held in one assembly. Their relative setting takes up part of the axial clearance between the balls and raceways. When the motor reverses, the axis responds with less idle movement than it would with an unadjusted single nut.



This construction also makes the nut longer. Before choosing DFU2505, check the available space around the nut housing, flange and end-of-stroke positions.



Product Description

A 5 mm lead is useful when the design favours controlled feed distance over high travel per revolution. At 600 rpm, for example, the theoretical feed rate is 3000 mm per minute; actual machine speed must still be set according to screw length, support method and operating conditions.



The finished screw is not selected by stroke alone. Nut length, safety allowance, bearing seats and the coupling section all occupy part of the overall length. These areas should be shown on the machining drawing before production begins.



During assembly, secure the end supports and nut housing without pulling the screw sideways. Rotate it manually through the intended travel before connecting the motor. A noticeable tight spot usually indicates mounting error, contamination or incorrect alignment and should be corrected before powered operation.



Product Information

Selection Item	DFU2505 Data
Series	DFU
Nominal Diameter	25 mm
Travel Per Turn	5 mm
Nut Style	Extended flanged double nut
Main Design Purpose	Reduced axial play during reversal
Overall Screw Length	Specified by customer
Shaft End Preparation	According to machining drawing
Required Matching Parts	Fixed support floating support coupling and nut housing



FAQ

How far does the nut travel for one screw revolution?

The nominal travel is 5 mm per revolution.

Why choose the DFU version instead of a single nut?

Its two-part nut arrangement is used to reduce axial clearance, particularly when the travel direction changes frequently.

Can a DFU2505 replace an SFU2505 without modifying the machine?

Not automatically. The double nut is longer, and its flange and mounting dimensions must fit the available space.

What information is required for shaft-end machining?

A drawing should show the finished screw length, bearing seats, thread sizes, coupling end and dimensional tolerances.

Can a custom assembly be ordered?

We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
