Compact EK EF Screw Supports
Compact end-support units for locating and supporting a ball screw in machines where installation space is limited.
Description
Product Details

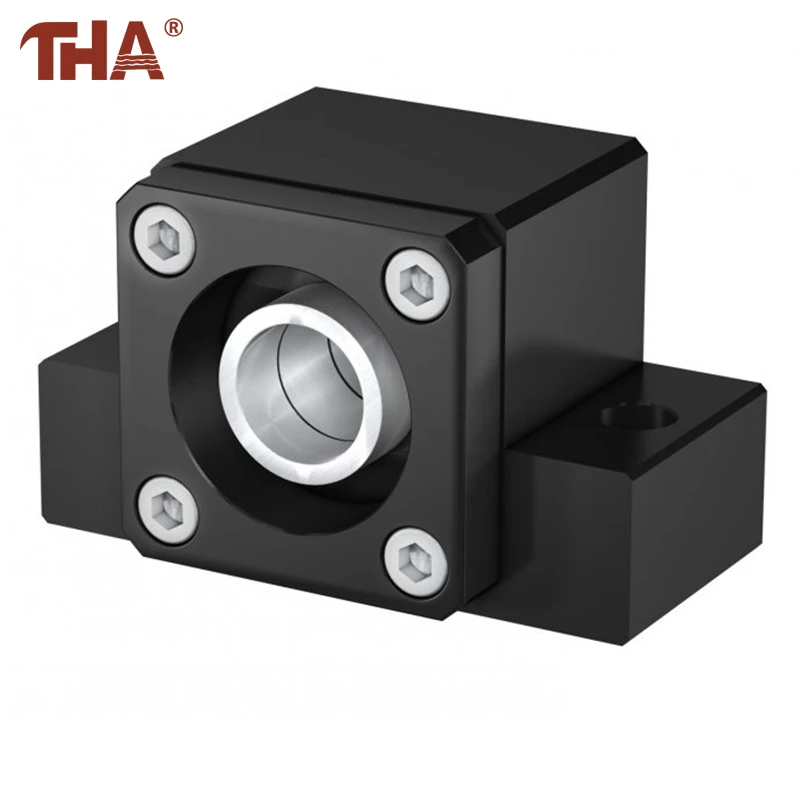

The EK and EF units are used at opposite ends of a ball screw. The EK unit serves as the fixed-side support, locating the screw axially and carrying thrust generated during transmission. The EF unit supports the opposite end while allowing the screw assembly to operate without unnecessary axial constraint.

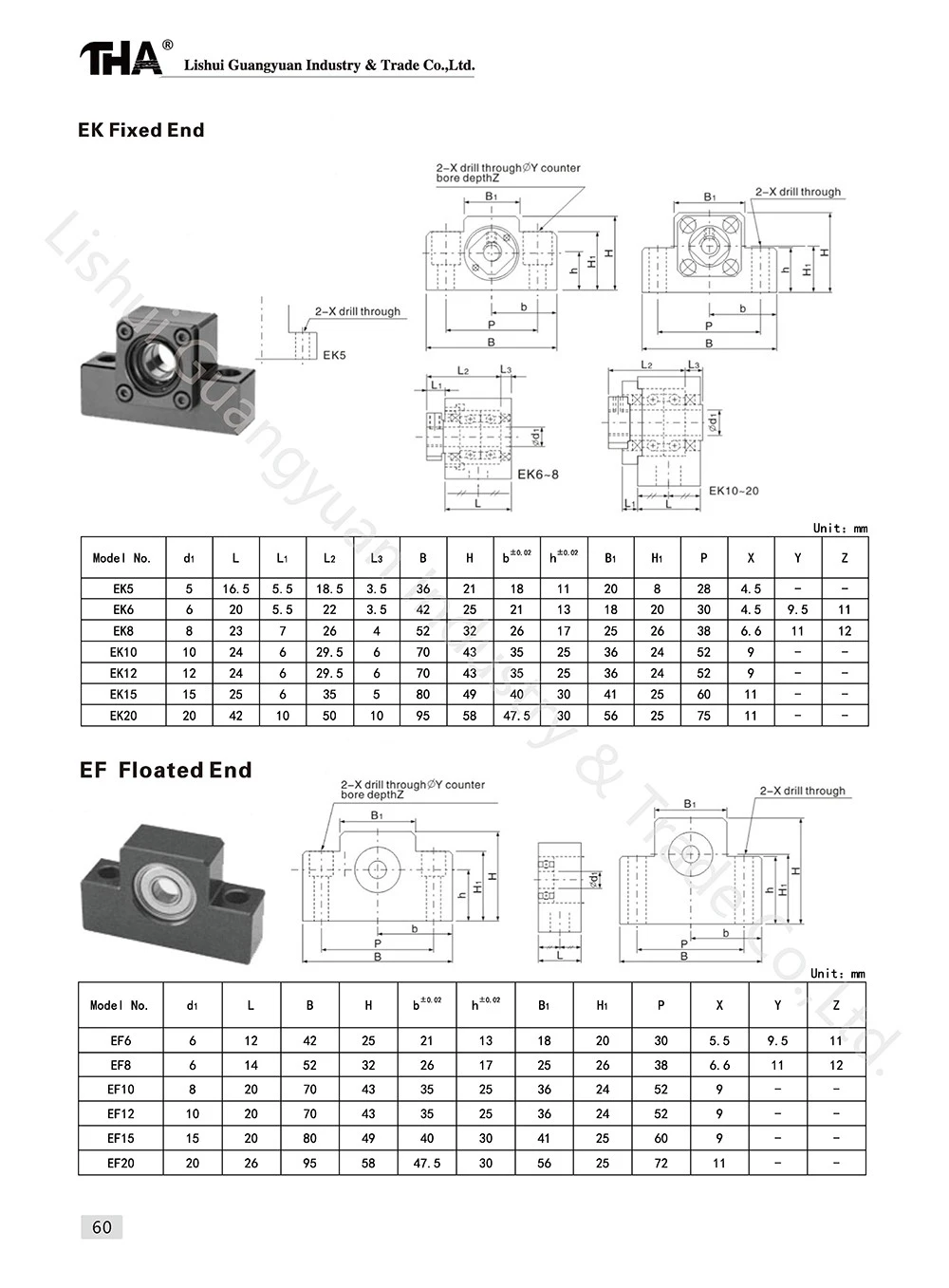

Available fixed-side models include EK5, EK6, EK8, EK10, EK12, EK15, and EK20. Supported-side options include EF6, EF8, EF10, EF12, EF15, and EF20.
Product Description
These compact support units are used with ball screws in CNC machinery, positioning stages, automated production equipment, and other linear-drive assemblies. Their low-profile shape suits designs with restricted mounting height.
The EK and EF sizes must be selected according to the machined dimensions at each end of the ball screw. Bearing bore, shaft shoulder, locknut thread, mounting-hole spacing, center height, and support orientation must all match before installation. The model numbers do not represent interchangeable fixed and supported units.
We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
Product Information：
| Item | Specification |
|---|---|
| Product Name | Compact EK EF Screw Supports |
| Product Type | Ball screw end-support units |
| Fixed Side Models | EK5 EK6 EK8 EK10 EK12 EK15 EK20 |
| Supported Side Models | EF6 EF8 EF10 EF12 EF15 EF20 |
| EK Function | Axial location and thrust support |
| EF Function | Support for the opposite screw end |
| Bearing Material | Bearing steel |
| Selection Basis | Ball screw end machining and mounting dimensions |
| Applications | CNC machinery linear stages and automation equipment |
| Customization | Available according to ball screw drawings |
