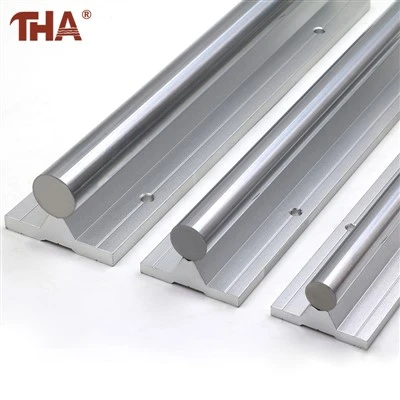

TBR Linear Guide

TBR linear guide rail is a kind of rolling guide, which is reciprocated by the steel ball between the slide block and the guide rail, and the load platform can easily move linearly along the track with high precision. TBR linear guides wear less and can maintain accuracy for a long time, especially suitable for equipment requiring high precision and long-term stable operation.

1. Structure composition

TBR linear guide is mainly composed of the following parts:



Guide rail: Usually made of high-strength steel or aluminum alloy, with good wear resistance and bending resistance.



Slider: The slider has rolling elements inside, such as balls or rollers, to slide on the guide rail



End cover and fixing device: fixing slide block and guide rail to ensure system stability.



2: Advantages

TBR linear guide has the following characteristics:



High positioning accuracy; When TBR linear guide is used as guide, because the friction mode of TBR linear guide is rolling friction, not only the friction coefficient is reduced, but also the difference between dynamic friction and static friction force will become very small. Therefore, when the load platform moves, there will be no slipping phenomenon, and high positioning accuracy can be achieved.



Reduce wear can maintain accuracy for a long time: The wear of the rolling guide rail is very small, so the equipment can maintain accuracy for a long time.



Suitable for high-speed movement: the friction heat generated during the operation is less, not easy to heat deformation, suitable for high-speed sports.

‌

convenient installation and debugging: the assembly of guide rail and slide block is relatively simple, and the precision of reproduction processing is easy to achieve.

‌

Simple lubrication structure: TBR linear guide rail is equipped with oil nozzle on the slider for easy lubrication.

 ‌

TBR linear guides play an important role in modern industry due to their high efficiency, precision and durability. Through reasonable selection and maintenance, its performance can be maximized to meet the needs of various high-precision linear motion. With the advancement of technology, the application prospects of TBR linear guides will be broader and will continue to play a key role in the field of intelligent manufacturing and automation.



Product Warranty

Our worry-free 12-month warranty since you received the goods at the destination port, and friendly customer service.



Product Information
Product Name	TBR linear rail
Material	GCR15
Length	100mm-4000mm
Application	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, other, Advertising Company.
Model No.	TBR16, TBR20, TBR25, TBR30, TBR16UU, TBR20UU, TBR25UU, TBR30UU, TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU.
MOQ	1 SET
Package	Carton, wooden box, pallet
Service	24H



FAQ

1. Q: Who are you?

A: Lishui Guangyuan Industry and Trade Co., Ltd., is a company integrating production and export in Zhejiang Province, China.



2. Q: What can you buy from us?

A: Linear motion, linear guide rails, ball screw, linear stages, linear shaft and so on.



3. Q: What is your advantages?

A: Manufacturer, the most competitive price and good quality.

B. Perfect technical engineers give you the best support.

C. Rich stock and quick delivery.



4. Q: Can I be your distributor in our country?

A: Yes, welcome to be my distributor.



5. Q: Can I visit your company?

A: You can come here whenever you want, we'll introduce our factory and product to you.
