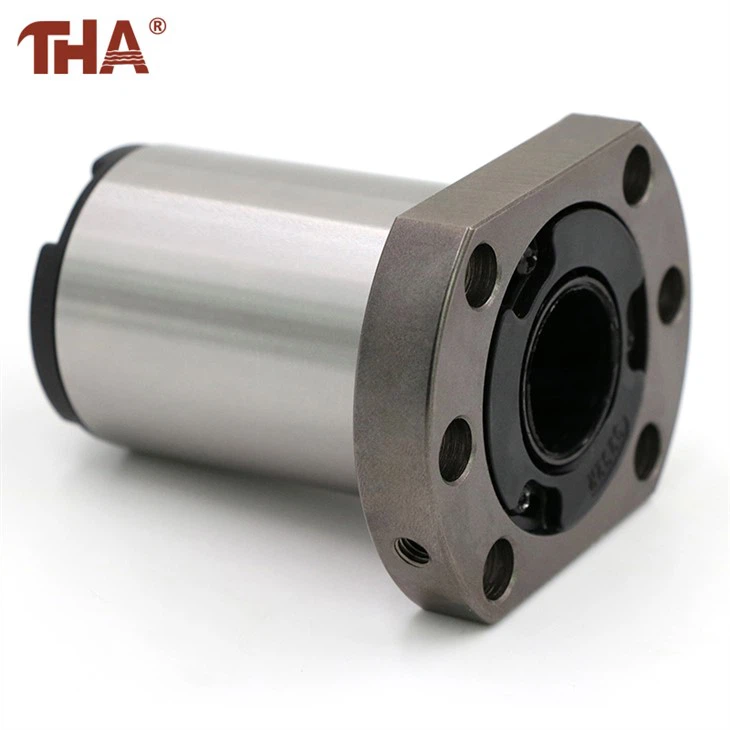

Lead Screw Bearing

Lead screw bearing is made of screw and ball nut. It's function is to turn the rotary motion into linear motion, which is a future extension and development of ball screw. The significance of the development is to move into a rolling bearing from sliding action. With little fabrication, Ball Screw are widely used into various industrial equipment and precision instruments.



Product Details

The high efficiency of lead screw bearing is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.very stringent quality control standards covering every production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible.



Product Description

The details of lead screw bearing:

1. Grade: C7, C5

2. Diameter: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm

3. Standard Model: SFU/ DFU/ SFI/ DFI

SFU1204/ 1605/ 1610/ 2005/ 2010/ 2505/ 2510/ 3205/ 3210/ 4005/ 4010/ 5005/ 5010/ 5020/ 6310/ 6320/ 8010/ 8020



Product Warranty

Our worry-free 12-month warranty since you received the goods at the destination port, and friendly customer service.



Product Information
Product Name	Lead screw bearing
Material	Bearing steel, Alloy steel, GCr15.
Length	10MM-6000MM , According to customer requirements
Application	CNC machine, 3D printing machinery, chemical machinery, woodworking machinery, engraving machines, window machines, high speed machinery, Semi-conductor Equipment, robot, railways, automation application and etc.
Thread Direction	Left Hand, Right Hand

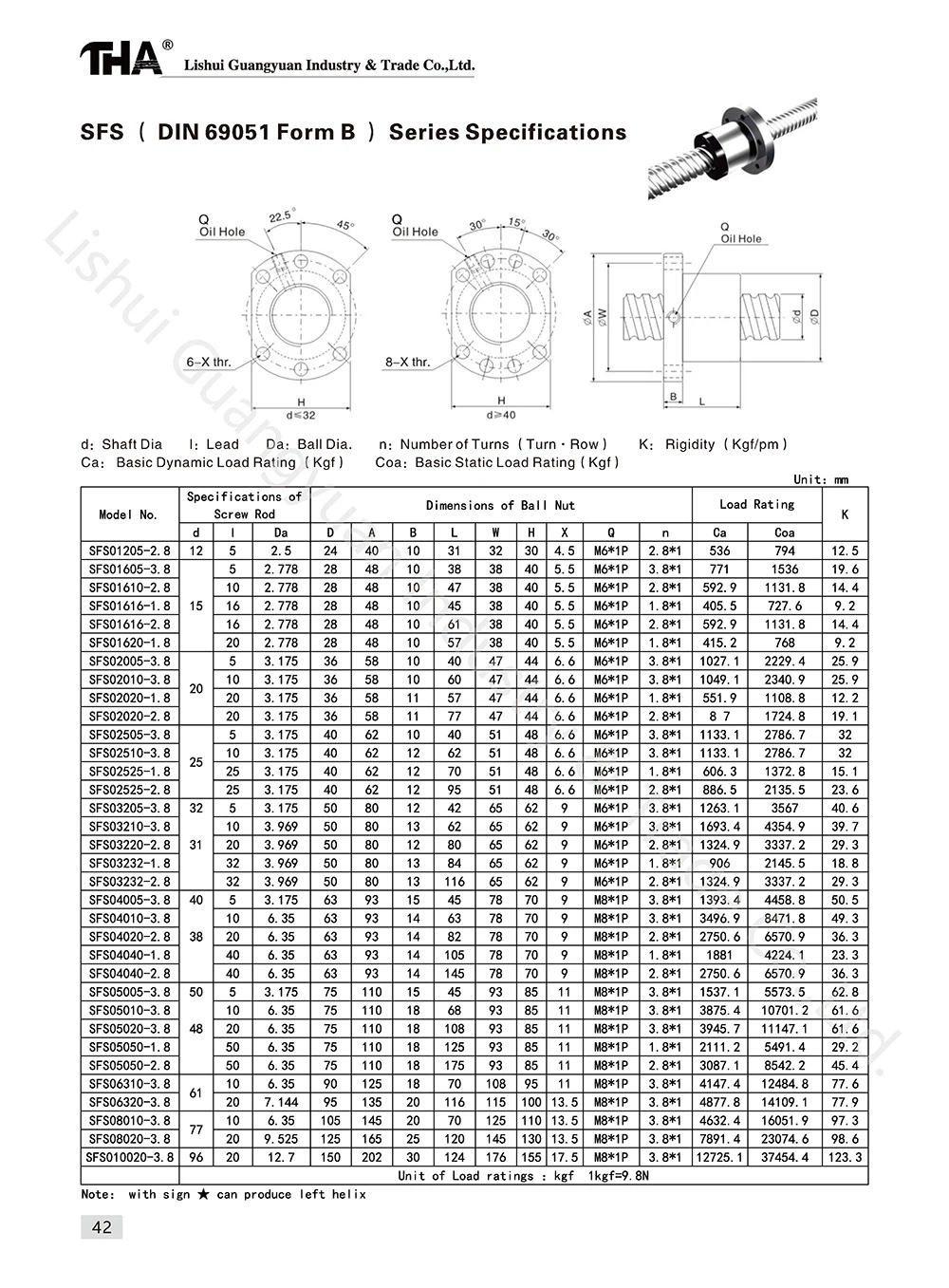

Ball Screw Series	SFU, DFU, SFE, SFS, SFY, SFI, SFA
Advantage	High precision, good stability, low noise, preferential price, high reliability, smooth operation, high durability
Service	Can be processed according to the customer's processing drawings.





FAQ

1. Q: Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available



2. Q: What is the producing process?

A: Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.



3. Q: I want to keep our design in secret, can we sign NDA

A: Sure, we will not display any customers' design or show to other people, we can sign NDA.



4. Q: How long does it take for bulk delivery?

A: After receiving the order and payment, it's normally ten days to start the delivery. If solution is urgent, we can discuss priority processing.



5. Q: What is your terms of payment?

A: We usually accept TT.
