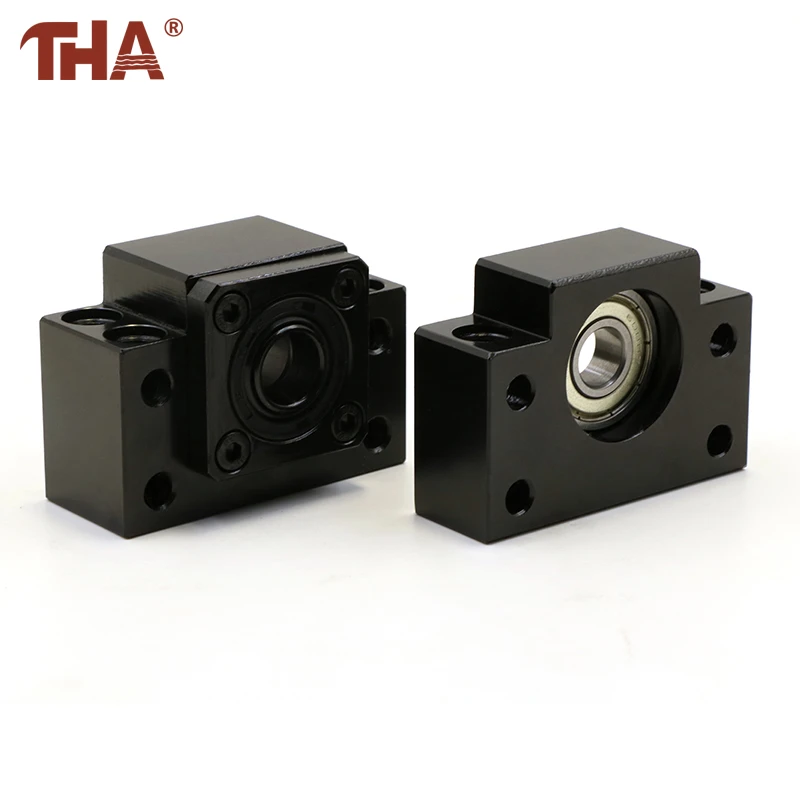

FK Fixed End Support

Product Details



Two angular contact bearings sit inside the housing, arranged so they can push back against axial force from either direction. That's what keeps the screw shaft from drifting once the machine starts reversing direction under load. The housing itself locates into the mounting bore and locks down through its flange. Eight sizes are offered: FK6, FK8, FK10, FK12, FK15, FK20, FK25, FK30.



Getting the Pairing Right



A screw needs one fixed support and one floating support, never two of the same kind. Put a fixed-type support at both ends and the shaft has nowhere to go as it warms up and expands slightly during a run, so resistance climbs the longer the machine operates. Put a floating-type support at both ends and the shaft has no axial anchor, so play creeps in and gets worse with use. This support belongs at the fixed, drive-side end, paired with an FF-type unit on the far side that lets the shaft spin freely.



Matching the Size



Choosing between the eight sizes isn't as simple as reading off the screw's nominal diameter. What actually decides the fit is the machined shaft end itself: bearing journal size, locknut thread, and mounting bore dimensions. Two screws sharing the same body diameter can still finish differently at the end, so it's worth checking the drawing rather than assuming the headline number tells the whole story.

We build to customer drawings under OEM/ODM. Orders as small as a single piece are fine for standard sizes.



Specification Table



Item	Specification
Product Name	FK Drive-End Bearing Housing
Support Position	Fixed drive end
Housing Style	Round flanged housing
Bearing Type	Angular contact ball bearing, bidirectional axial load
Matching Support	Floating-type unit at the opposite end
Models	FK6, FK8, FK10, FK12, FK15, FK20, FK25, FK30
Selection Basis	Screw end machining and mounting dimensions, not nominal screw diameter



FAQ



Q: Manufacturer or trading company?
A: We manufacture in-house and handle our own export, so there's no middleman markup built into the price.

Q: Is a drawing required for a quote?
A: Not strictly. A sample, a photo, or even a rough sketch with the key dimensions marked is usually enough for us to work from.

Q: What if I need a sample first?
A: We'll ship one out if it's not something you can source locally nearby. You'd cover the part cost and shipping, and shipping scales with how many samples go out.

Q: Do samples ever come free?
A: Sometimes, on a case-by-case basis, though shipping is still on your end either way.



About Us



Ten-plus years in linear motion parts, run out of our own roughly 26,000-square-meter facility. We've built relationships with buyers in 25-plus countries across Asia, Europe, and the US, and everything that leaves here carries proper certification and backing from a 24-hour service team.
