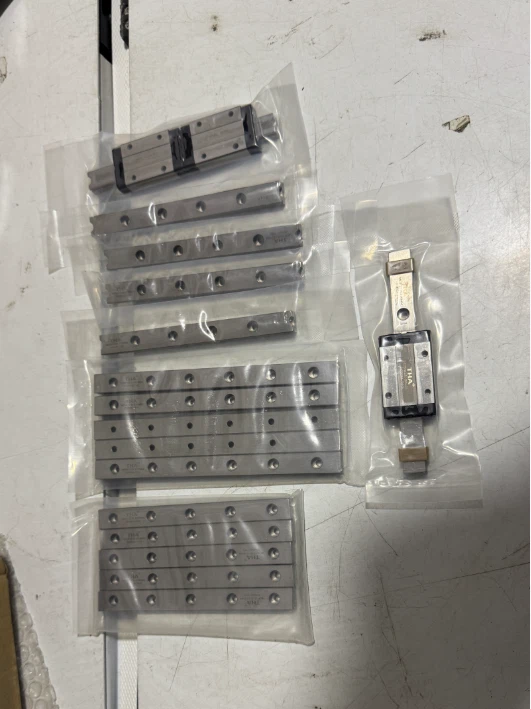

A batch of sample miniature linear guides has been prepared this week for a customer evaluation order. The photo shows the full sample set laid out for inspection before dispatch - short rail segments paired with matching sliders, all individually bagged and ready to go.
The rails in this batch are stainless steel miniature linear guides running at H precision grade. Stainless steel is the material choice here for a reason. In applications where the guide system is exposed to moisture, cleaning agents, or corrosive environments - medical equipment, food processing machinery, semiconductor handling - carbon steel rails rust out fast. Stainless holds up without any additional surface coating, which also means there is one less variable to manage over the product's service life.
H grade sits in the mid-to-high range of the precision scale. It is accurate enough for most instrumentation and light automation work without pushing into the cost territory of the tighter grades. For the kind of compact positioning systems these miniature rails typically end up in, H grade is usually the practical sweet spot.
One thing worth mentioning is the customization side. These rails can be cut to whatever length the customer needs rather than being locked into standard catalog sizes. For equipment builders working with tight spatial constraints, that flexibility saves a fair amount of redesign time. Beyond dimensions, we also offer private label options - the customer's own logo can be marked on the rails and sliders, which is useful for OEM buyers who want a consistent branded appearance across their product.
Sample orders like this one are a normal part of how procurement decisions get made for precision components. Engineers want to check the fit, feel the surface finish, and run their own dimensional checks before committing to a full production order. We keep sample lead times short for exactly that reason.
If you are evaluating miniature linear guides for an upcoming project, get in touch with your spec requirements. Custom lengths, precision grades, and branding are all on the table.
