Coupled Drive GZS90K Linear Actuator
A single-axis slide in which a motor turns the ball screw through a separate shaft coupling.
Description
Products Description
This actuator is intended for positioning, assembly, inspection and automated transfer work. One unit provides straight-line travel; two or more units can also be arranged as an XY or XYZ system.
The listed stroke is the carriage travel, not the actuator's overall length. Before ordering, confirm the stroke, working load, travel speed, mounting direction, motor flange and coupling bore. Vertical use requires additional attention because the load can move if the motor loses holding torque or power.
We build to customer drawings under OEM/ODM, and accept orders as small as a single piece for standard sizes.
Products Specification
| Item | Specification |
|---|---|
| Product Name | GZS90K Linear Actuator |
| Model | GY GZS90K |
| Axis Type | Single axis |
| Drive | Ball screw |
| Motor Connection | Separate shaft coupling |
| Guidance | Linear guide |
| Stroke Range | 100 mm to 800 mm |
| Motor | Stepper or servo according to the application |
| Mounting Direction | Horizontal or vertical after load confirmation |
| Ordering Information | Stroke load speed motor interface mounting direction and positioning requirement |
Products Details

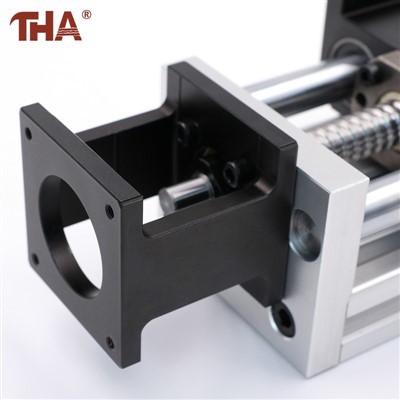

The GY-GZS90K uses a ball screw to move its carriage along a linear guide. The motor is mounted at one end and connected to the screw by a coupling. This arrangement keeps the drive parts accessible when the motor or coupling needs to be removed.
Stroke options run from 100 mm to 800 mm. The motor specification is selected separately to match the required speed, payload and mounting direction.
Company profile
Lishui Guangyuan Industry & Trade Co., Ltd.
Lishui Guangyuan Industry & Trade Co., Ltd. specializes in high-precision linear motion products, including ball screws, linear guides, sliders, and modules. Many products hold national patents and meet international certification standards. Located in Lishui, Zhejiang, China, the company spans over 26,000 square meters with 200+ employees, including 50+ senior technicians. Advanced facilities and strict quality control ensure excellence from raw materials to final packaging.
Our products are widely used in industries such as medical, printing, chemical, woodworking, and automation. Known for cutting-edge technology and exceptional service, we are trusted by clients worldwide. Committed to quality and efficiency, we look forward to collaborating with you to create a bright future.
Our address
No.979, Qingchun Street, Liandu District, Lishui, Zhejiang, China.
Kristy: +8617769815516
Abby: +8618967093658
admin@gyballscrew.com
FAQ
1.Q: Are you trading company or manufacturer ?
A:We are a manufacturer with our own factory covering more than 20,000 square meters.
2.Q:How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Q: What's your after-sell service?
A: We promise to our customers the "24H on-site to solve problems(China Only)" and "48H reply solution" service(For foreign country). Please feel free to contact with us.
4.Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
