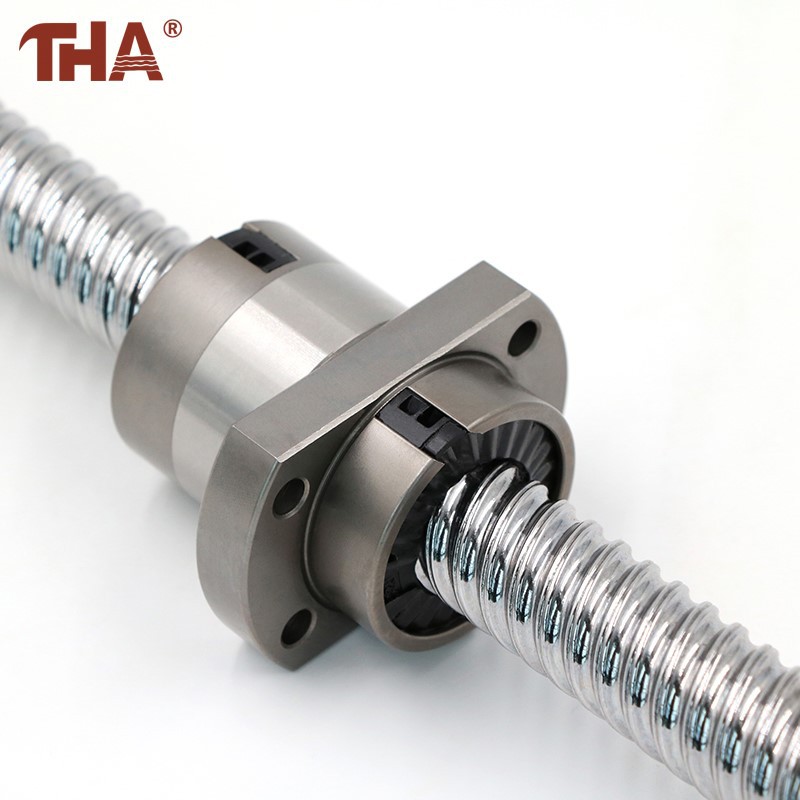

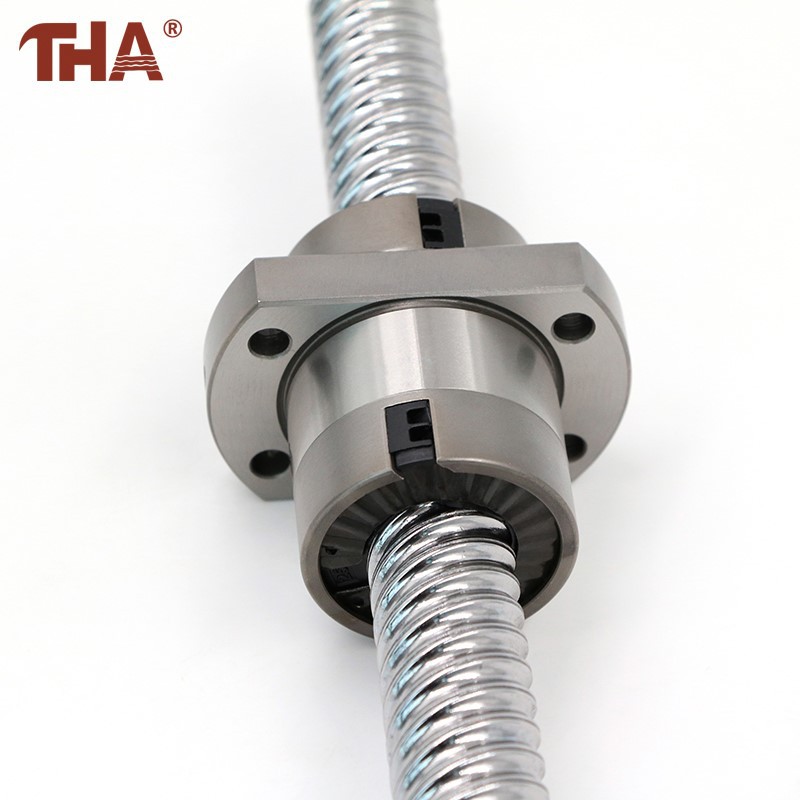

Ball screw is a common transmission device, which is widely used in mechanical equipment. The correct installation method is very important to ensure the accuracy and performance of the ball screw. The following are some key points of the installation method of ball screw.
1. Preparation: Before installing the ball screw, some preparations are needed. First, clean the installation position to ensure that there are no impurities and dirt. At the same time, check the integrity and quality of ball screws and related accessories to ensure that they are not damaged or deformed.
2. Selection of installation position: Select an appropriate installation position to ensure that the ball screw can run normally and provide the required transmission effect. The installation position should avoid excessive vibration and impact, and avoid installation in corrosive media or high temperature environment.
3. Installation of ball screw and supporting parts: First, insert the ball screw into the sliding block or seat groove of supporting parts (such as sliding table or fixed seat). Ensure that the ball screw is matched with the supporting part and can move freely on it. Then, the ball screw is fixed on the support member by bolts or clamping devices.
4. Calibration and adjustment: After the ball screw is installed, it needs to be calibrated and adjusted to ensure the accuracy and performance of the ball screw. You can use professional measuring tools, such as vernier caliper or laser measuring instrument, to check the straightness, verticality and parallelism of ball screw, and make necessary fine adjustment and calibration.
5. Lubrication: Before installing the ball screw, apply a proper amount of lubricant to the ball screw and guide rail. Lubricant can reduce the friction and wear of ball screw and prolong its service life. During the operation of the ball screw, it is necessary to check the lubrication regularly and add or replace lubricant as needed.
When installing the ball screw, there are several points that need special attention.
1. Uniform distribution of force: When installing the ball screw, attention should be evenly distributed to avoid local overload and deformation. During installation, it is necessary to keep the ball screw aligned with the supporting parts to ensure its smooth operation in the installation position.
2. Installation force control: When installing the ball screw, attention should be paid to controlling the installation force to avoid deformation or damage of the ball screw caused by excessive force. A torque wrench or torque controller can be used to ensure the correct installation force.
3. Pre-tightening and relaxation: According to the installation guide provided by the manufacturer, appropriate pre-tightening and relaxation treatment shall be carried out. The accurate control of the pre-tightening degree of the ball screw plays an important role in the normal operation of the ball screw and the play of the transmission effect.
In a word, the correct installation method is very important for the performance and accuracy of ball screw. Preparations should be made in advance, the proper installation position and supporting parts should be selected, the ball screw should be installed and calibrated and adjusted, the attention should be evenly distributed, the installation force should be controlled, and the lubricant should be applied correctly. Through the correct installation method, the normal operation and long-term reliability of ball screw can be ensured, and the efficiency and performance of mechanical equipment can be improved.
